ORIGINAL FEED BELT
SM 3 B541
Auto Reverse
Document
Feeder
B541

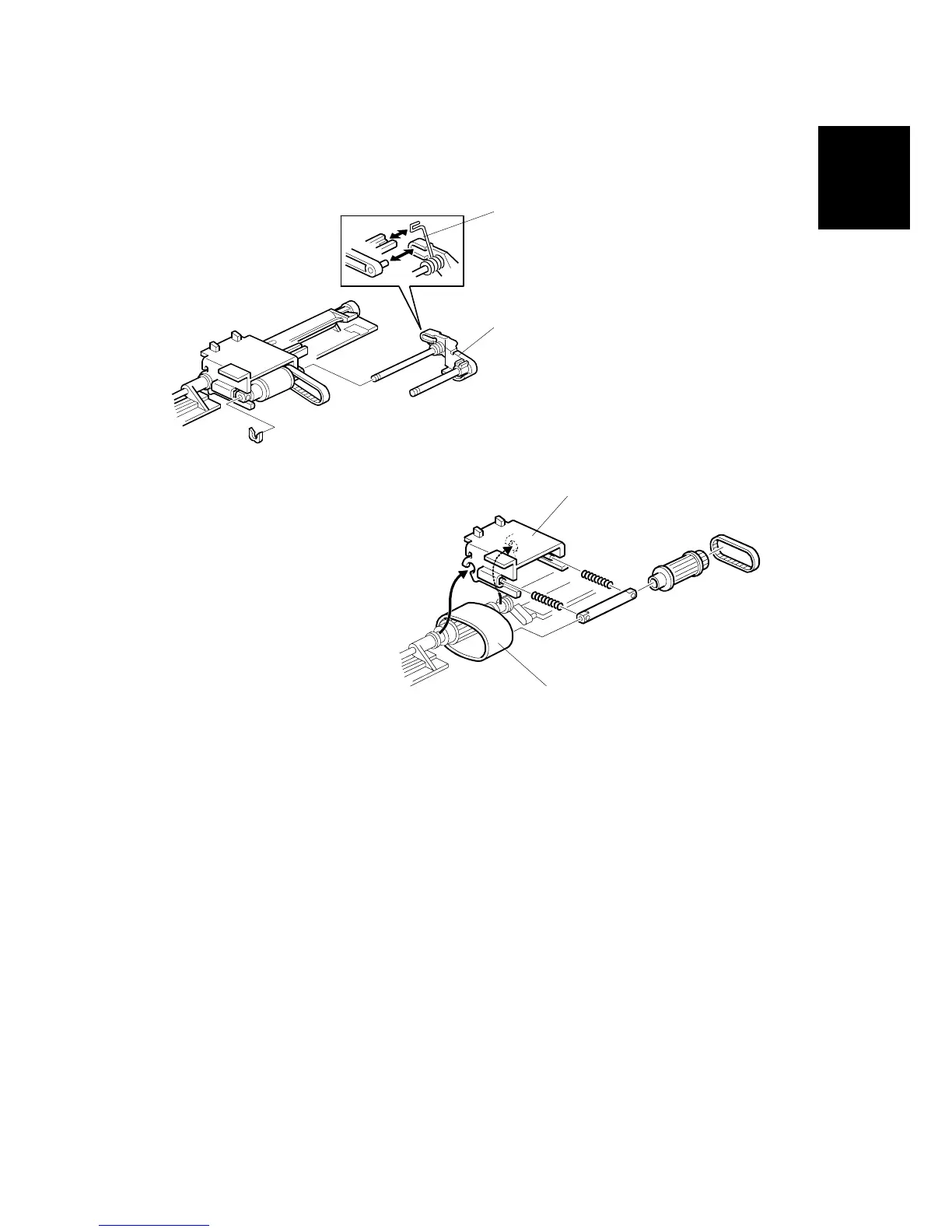

1.4 ORIGINAL FEED BELT
1. Original feed unit and original pick-up roller (! 1.2, 1.3)
2. Shaft [A] ( x1, spring x1)
NOTE: Before removing the shaft, note carefully the positioning of the spring
[B]. This must be reset during re-installation.
3. Feed belt cover [C] (Timing belt, gear, shaft, springs x2).
NOTE: Do not lose the springs.
4. Original feed belt [D].
B351R104.WMF
B351R103.WMF
[A]
[B]
[C]
[D]
