Ricoh B079 - Booklet Unit

REMOVAL
SM 27 B546
Booklet
Finisher
B546
3.1.13 BOOKLET UNIT
1. Remove the following items.
• Upper and lower rear covers.
• Shift tray unit.
• Lower shift guide.

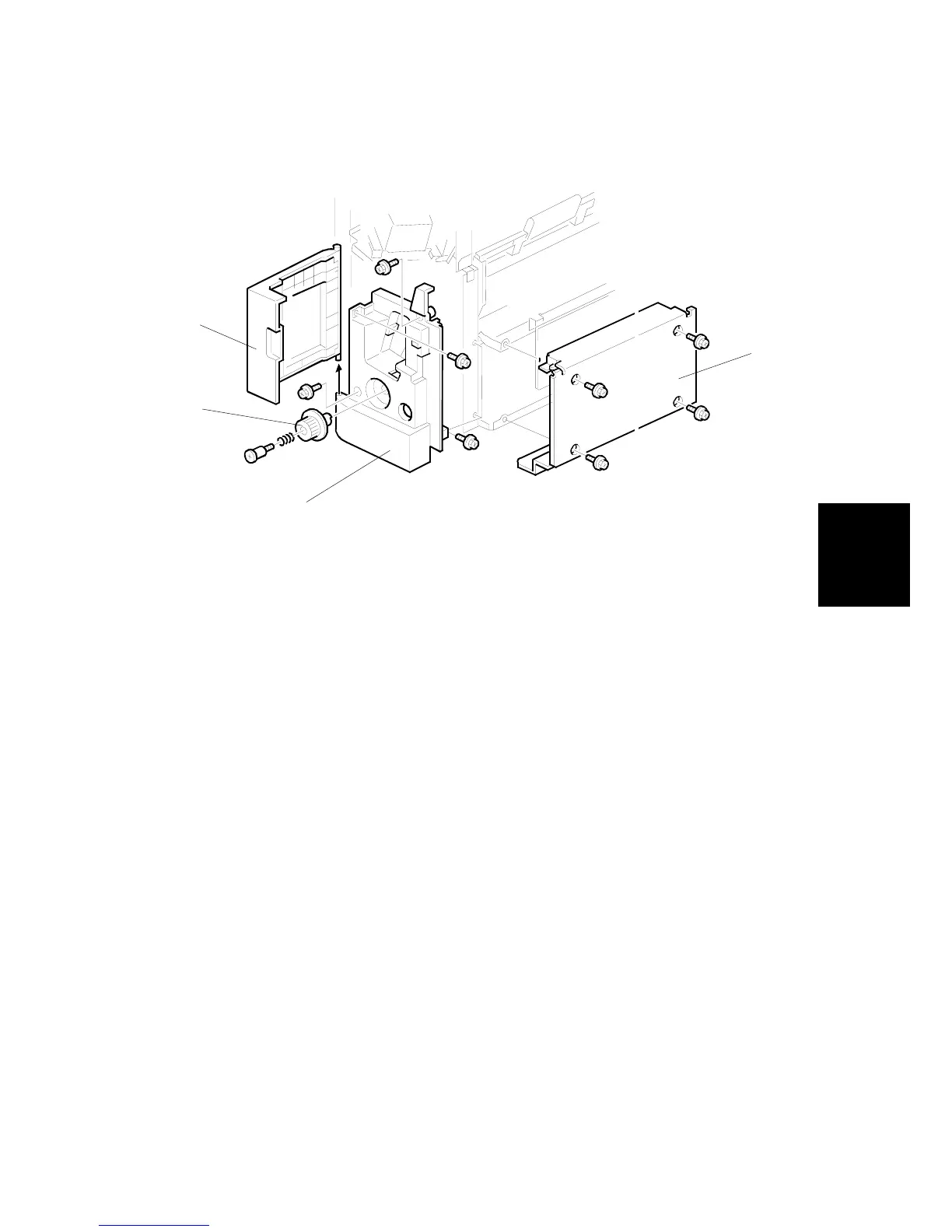

2. Remove the lower right cover [A] ( x 4).
3. Remove the folder roller knob [B] ( x 1 stepped).
4. Remove the lower inner cover [C] and lower door [D] ( x 5).
B546R561.WMF
[A]
[B]
[C]
[D]
