Replacement
Adjustment
PAPER FEED
SM 3-51 B079/B082

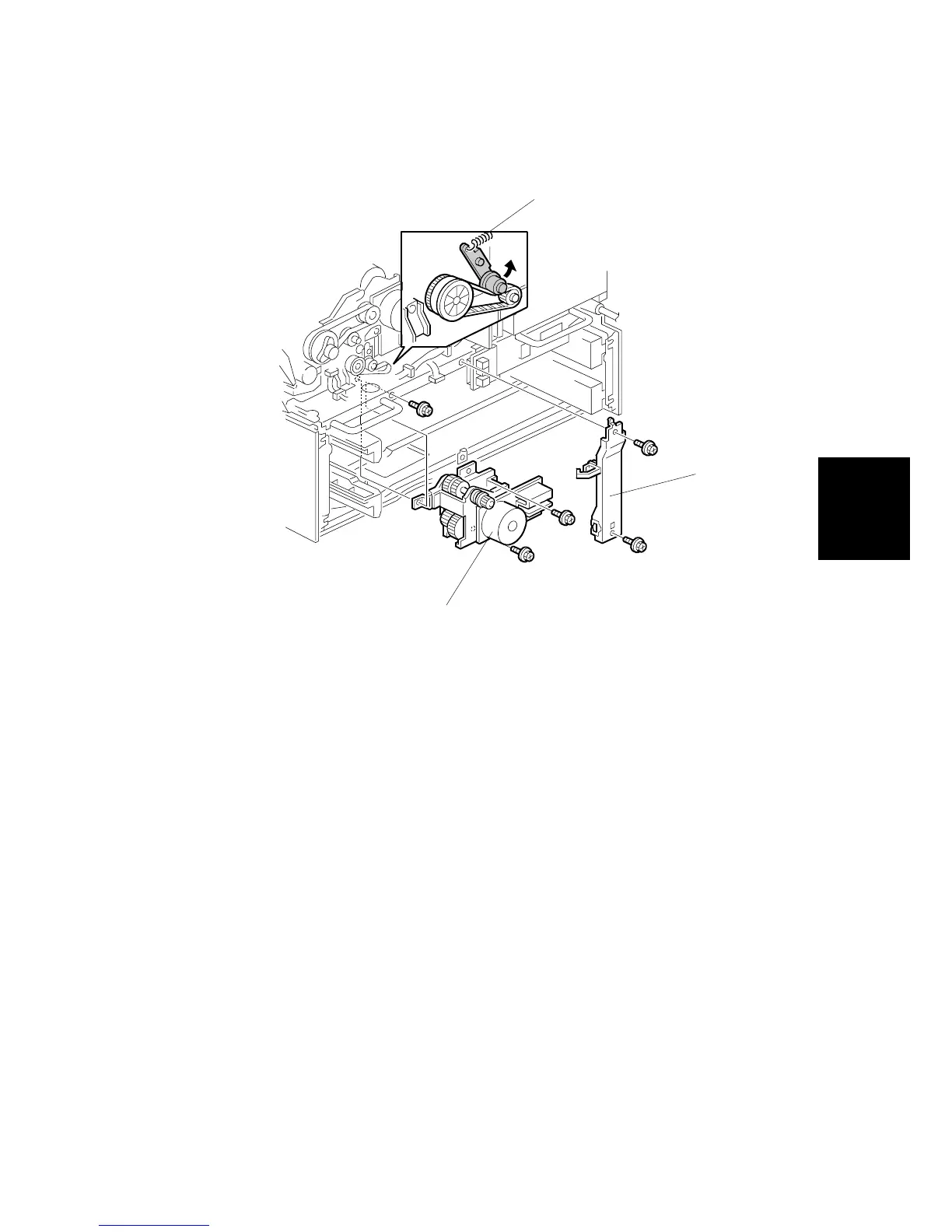

3.14.9 FEED/DEVELOPMENT MOTOR
1. Rear lower cover ( x4) (!3.7.2)
2. Rear upper cover ( x4) (!3.7.1)
3. Tray lift motor (! 3.14.8)
4. Support [A] ( x2, harnesses x2)
5. Timing belt [B] (Raise arm to release tension on belt.)
6. Feed/development motor [C] ( x3, x2)
B004R902.WMF
[A]
[B]
[C]
To Next Page
