Bridge Unit
B538
DF COVER OPEN SENSOR/FEED CLUTCH/ROM/DF DRIVE BOARD
SM 19 B538

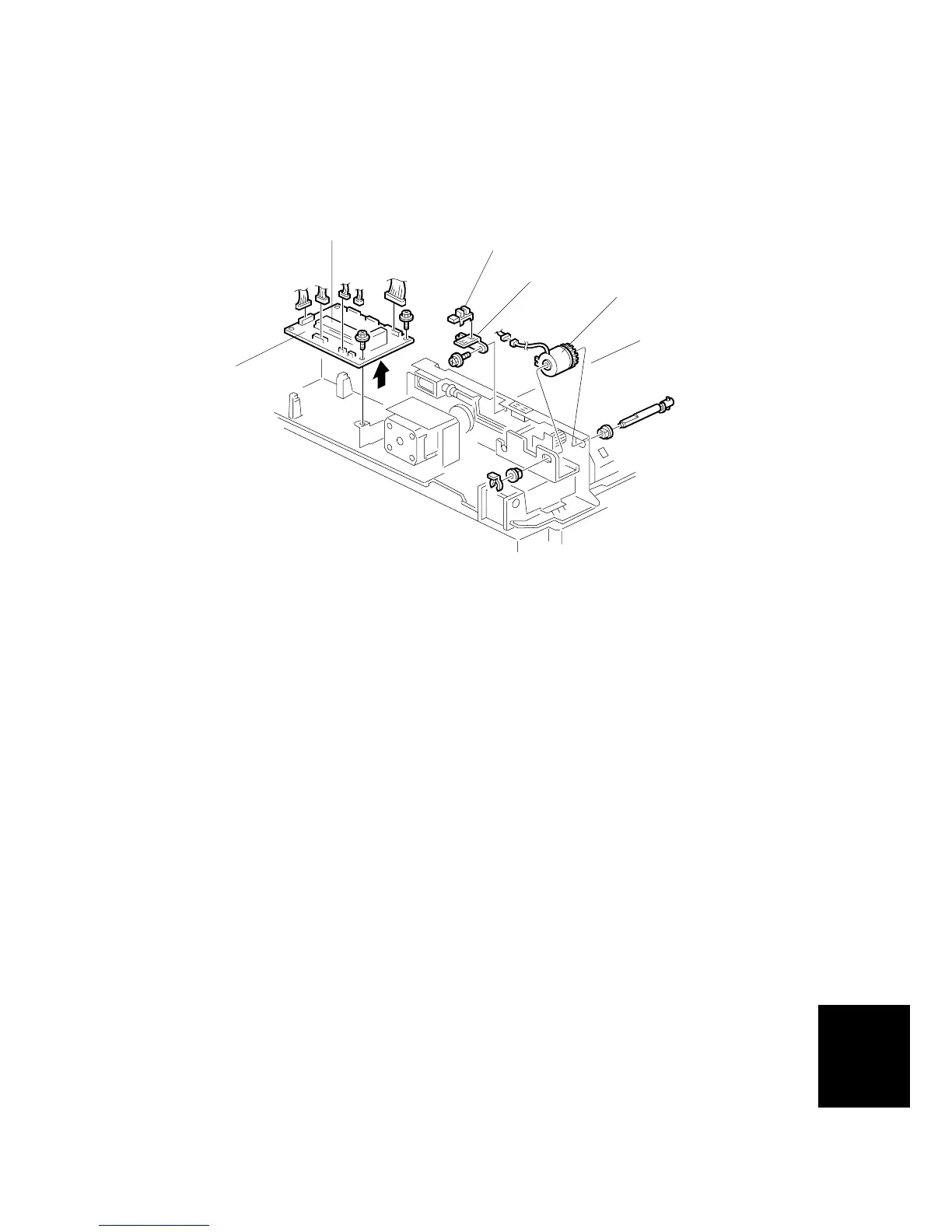

3.9 DF COVER OPEN SENSOR/FEED CLUTCH/ROM/DF
DRIVE BOARD
Exterior
1. Rear cover (% 3.1.1)
Feed Cover Open Sensor
2. Sensor bracket [A] ( x 1)
3. Feed cover open sensor [B] ( x 1)
Feed Clutch
2. Feed unit (% 1.2)
3. Feed clutch [C] ( x 1, 1 bushing,  x 1).
NOTE: Pull the shaft inward until the clutch can be removed.
ROM
2. Replace the ROM [D] on the DF drive board.
DF Drive Board
2. DF drive board [E] ( x 3, all connectors)
B387R199.WMF
[E]
[D]
[B]
[C]
[A]
