Ricoh B079 - Drum

PHOTOCONDUCTOR UNIT (PCU)
B079/B082 3-28 SM
3.11.2 DRUM

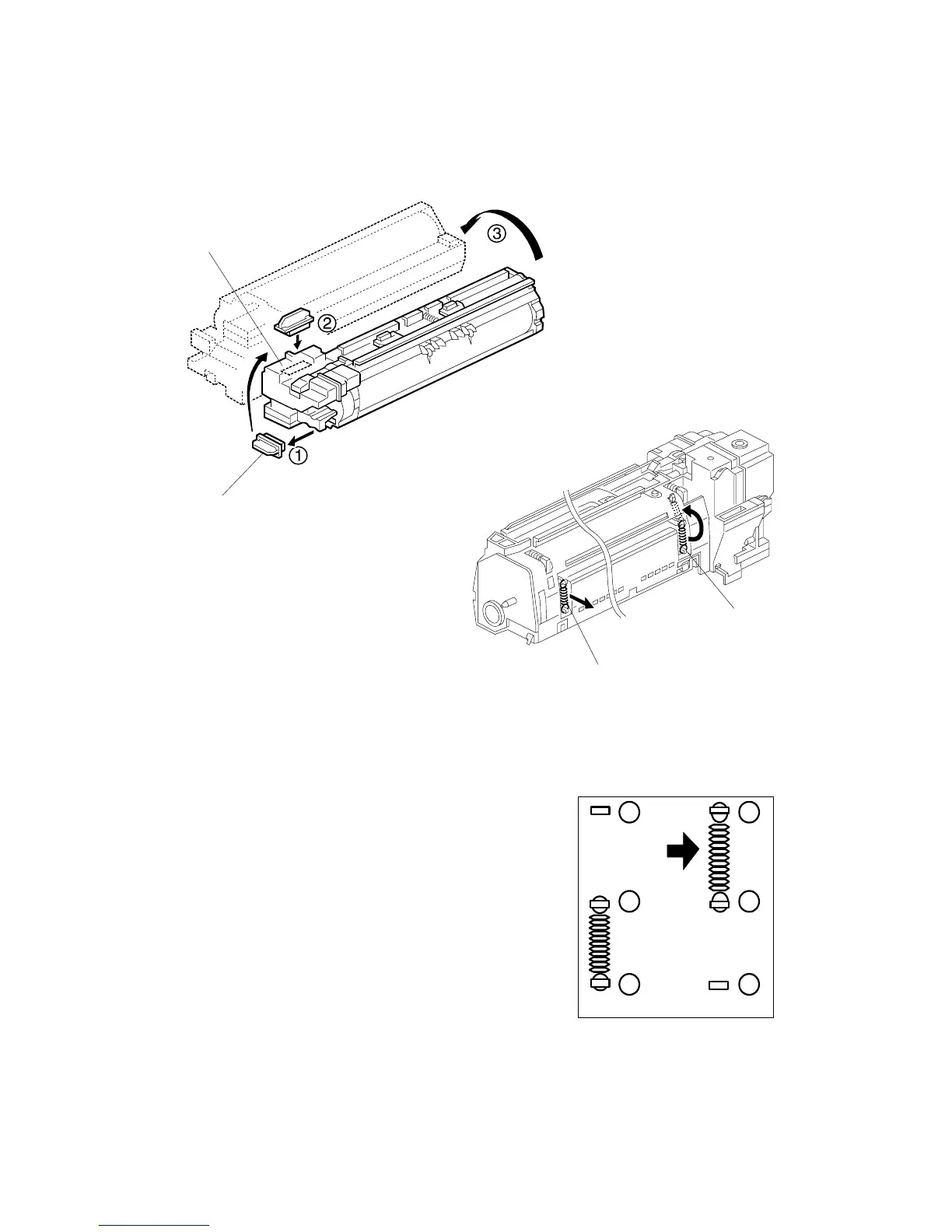

1. Remove the PCU (!3.3.1)
2. Toner cap [A]
3. Insert cap [A] into the toner entrance hole [B].
NOTE: Make sure that the cap is inserted completely into the hole.
4. On the left side of the PCU, disconnect the front
spring [C].
5. On the right side of the PCU disconnect the
spring [D] and attach it to hooks as shown.
• To prevent breaking the weaker hook #, use
a pair of needle-nose pliers to disconnect the
rear spring at $, then re-attach to $ and %.
• Moving this spring retracts the movable drum
cleaning blade so it does not touch the
surface of the drum when the drum is re-
installed.
B079R902.WMF
B079R711.WMF
1
2
3
1
2
3
B079R903.WMF
[A]
[B]
[C]
[D]
