SCANNER UNIT
SM 3-11 B079/B082
3.9.4 LENS BLOCK/SBU ASSEMBLY
1. ARDF (! 3.9.1)
2. Exposure glass and DF exposure glass (! 3.9.2)

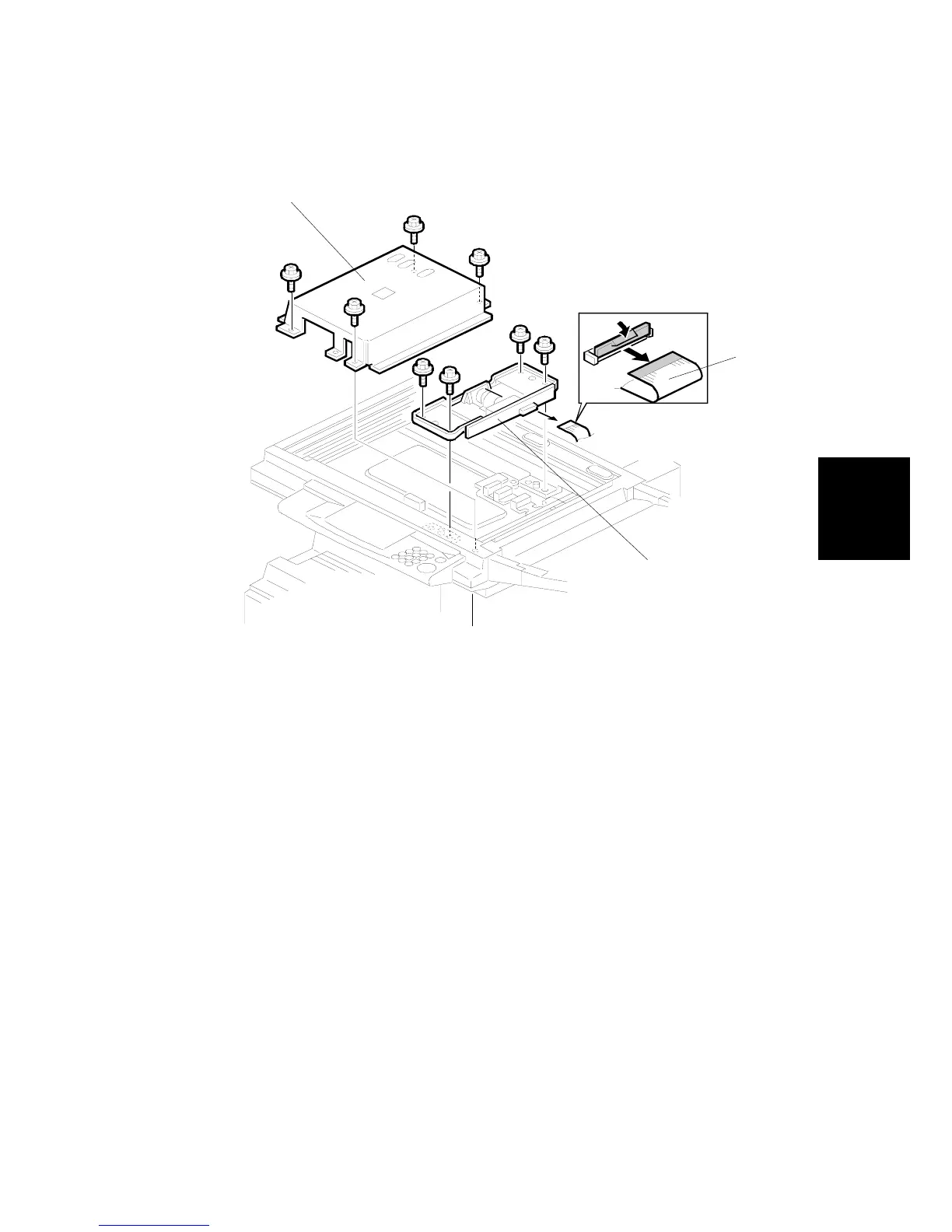

3. Lens cover [A] ( x4)
4. Flexible cable [B] ( x1)
5. Lens block assembly [C] ( x4)
NOTE: The elements of the lens block assembly have been factory adjusted
and paint locked at 8 points. Do not attempt to replace these items.
Replace the unit.
6. Perform scanner and printer copy adjustments (! 3.21)
