Installation
MAIN MACHINE INSTALLATION
SM 1-17 B079/B082
Electrical Total Counter
The electrical total counter no longer requires initialization. The new incrementing
counter is set to “0” at the factory.
NOTE: SP7825 (Total Counter Reset) remains in the Service Program Mode but
executing this SP has no effect.
HDD Caution Decal

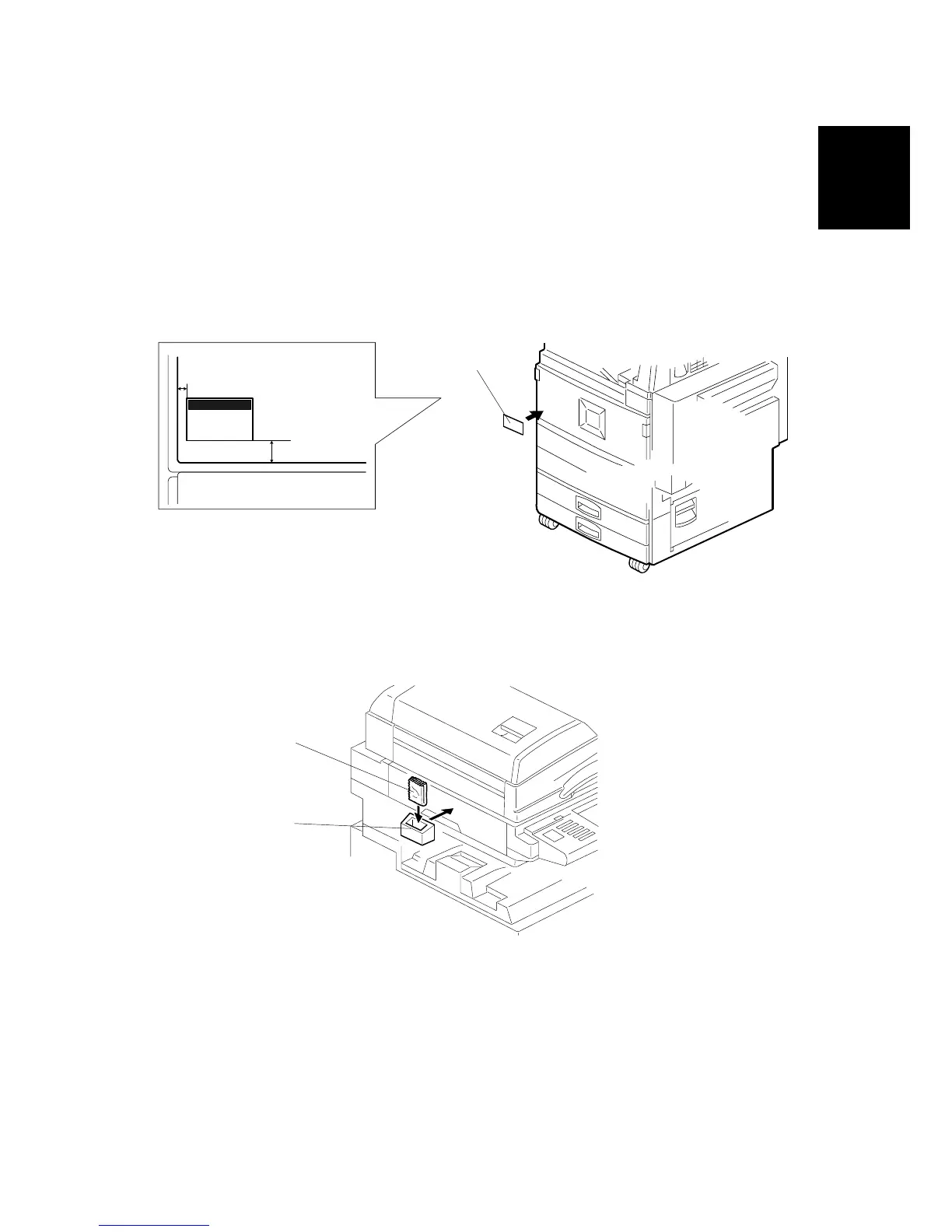

1. Attach the HDD Caution decal [A] to the front cover.
Exposure Glass Cleaner
1. Attach the exposure glass cleaner holder [B] to the left side of the machine.
2. Place the exposure glass cleaner [C] inside the holder.
NOTE: The exposure glass cleaner is used to clean the ARDF exposure glass,
the glass strip to the left of the large exposure glass.
10 mm (0.4")
25 mm (1.0")
B079I017.WMF
B079I018.WMF
B079I111.WMF
[B]
[C]
[A]
