COVERS
SM 1 B541
Auto Reverse
Document
Feeder
B541
1. REPLACEMENT AND ADJUSTMENT
1.1 COVERS

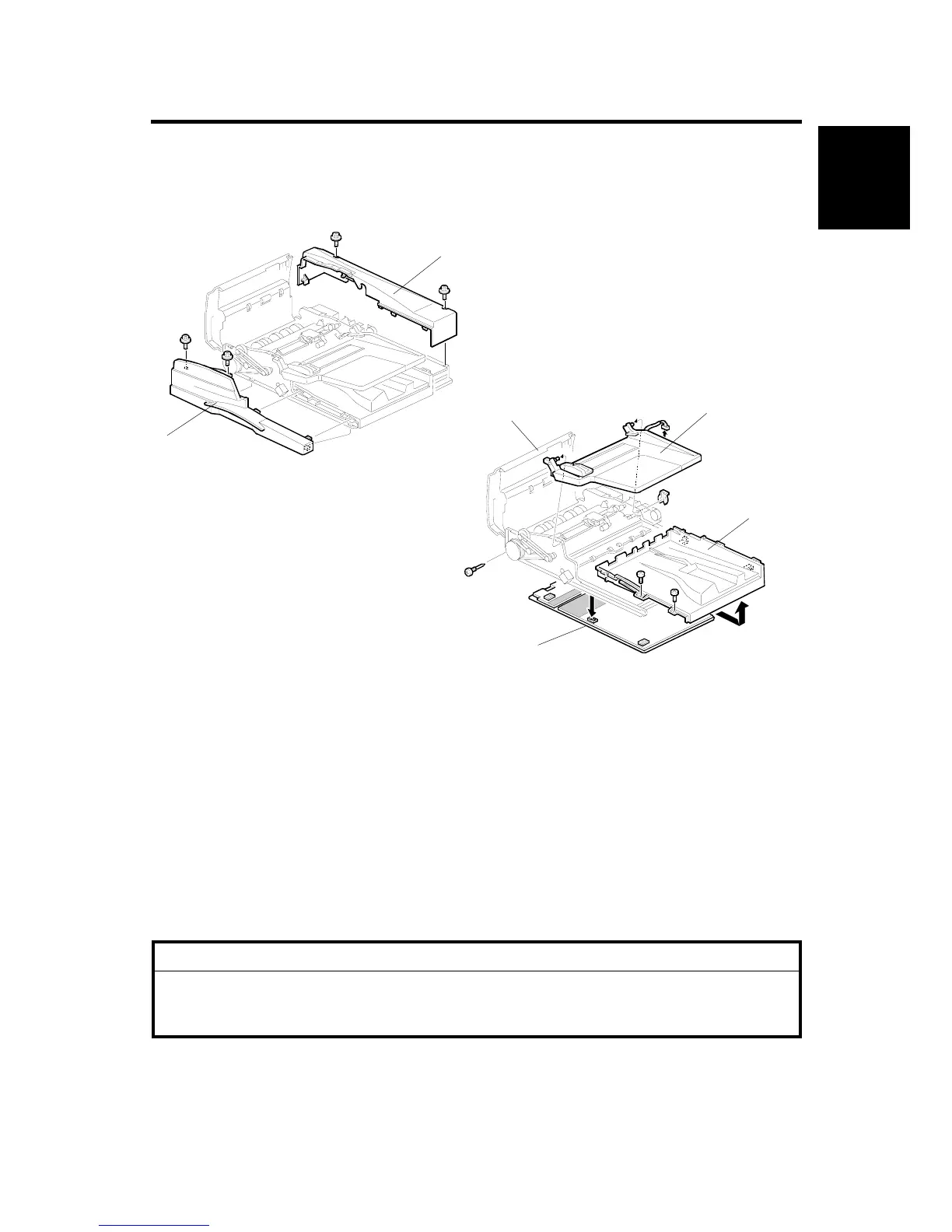

1. Front cover [A] ( x2)
2. Rear cover [B] ( x2)
3. Top cover [C] ( x1, x2)
4. Original tray [D] ( x1, x1)
5. Platen sheet [E] (Velcro pads)
6. Original exit tray [F] ( x2). Slide to the right and then pull out.
CAUTION
The hinge of the ARDF is spring-loaded and becomes much lighter with all the
covers removed. After removing all the covers, lay a heavy book on the front right
corner of the ARDF to prevent it from springing up unexpectedly.
B351R111.WMF
B351R110.WMF
[A]
[B]
[D]
[E]
[F]
[C]
