IMAGE FUSING AND PAPER EXIT
B079/B082 6-90 SM
6.15.2 FUSING DRIVE

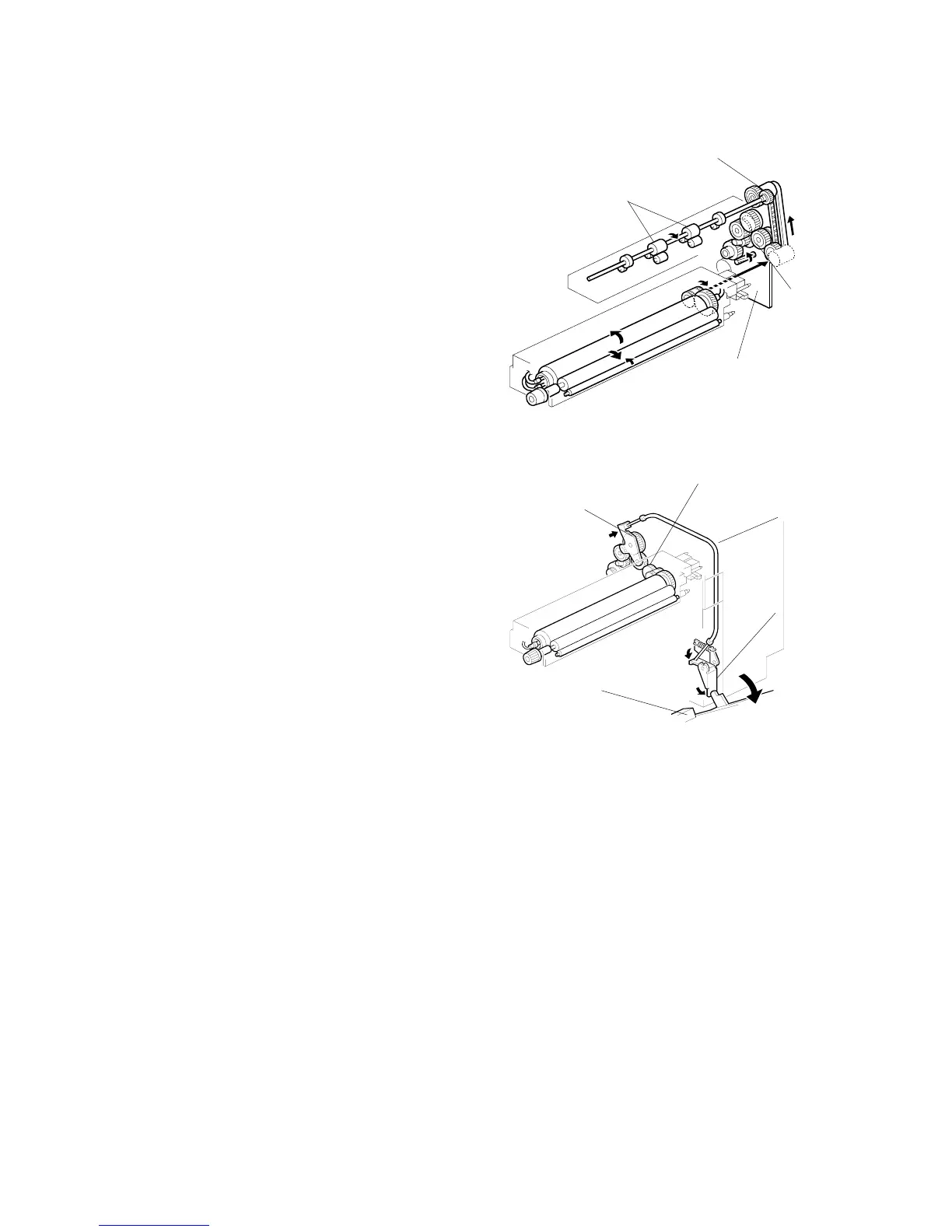

The fusing/exit motor [A] drives the fusing
unit through the gears [B] and also drives
the paper exit rollers [C] through a gear
and a timing belt [D].
6.15.3 FUSING DRIVE RELEASE MECHANISM
The fusing unit drive release mechanism
automatically disengages the fusing unit
drive gear [A] when the right door [B] is
opened.
When the right cover is opened, the
actuator plate [C] pulls release wire [D].
The wire pulls the fusing drive gear bracket
[E] and the fusing unit drive is disengaged.
B004D603.WMF
B004D605.WMF
[A]
[B]
[C]
[D]
[A]
[B]
[C]
[D]
[E]
