RELAY SENSOR REPLACEMENT
SM 13 B543
4.4 RELAY SENSOR REPLACEMENT
1. Pull out the LCT.
2. Remove the joint guide [A] (4 screws).
3. Remove the sensor bracket [B] (1 screw).
4. Replace the relay sensor [C] (1 connector).

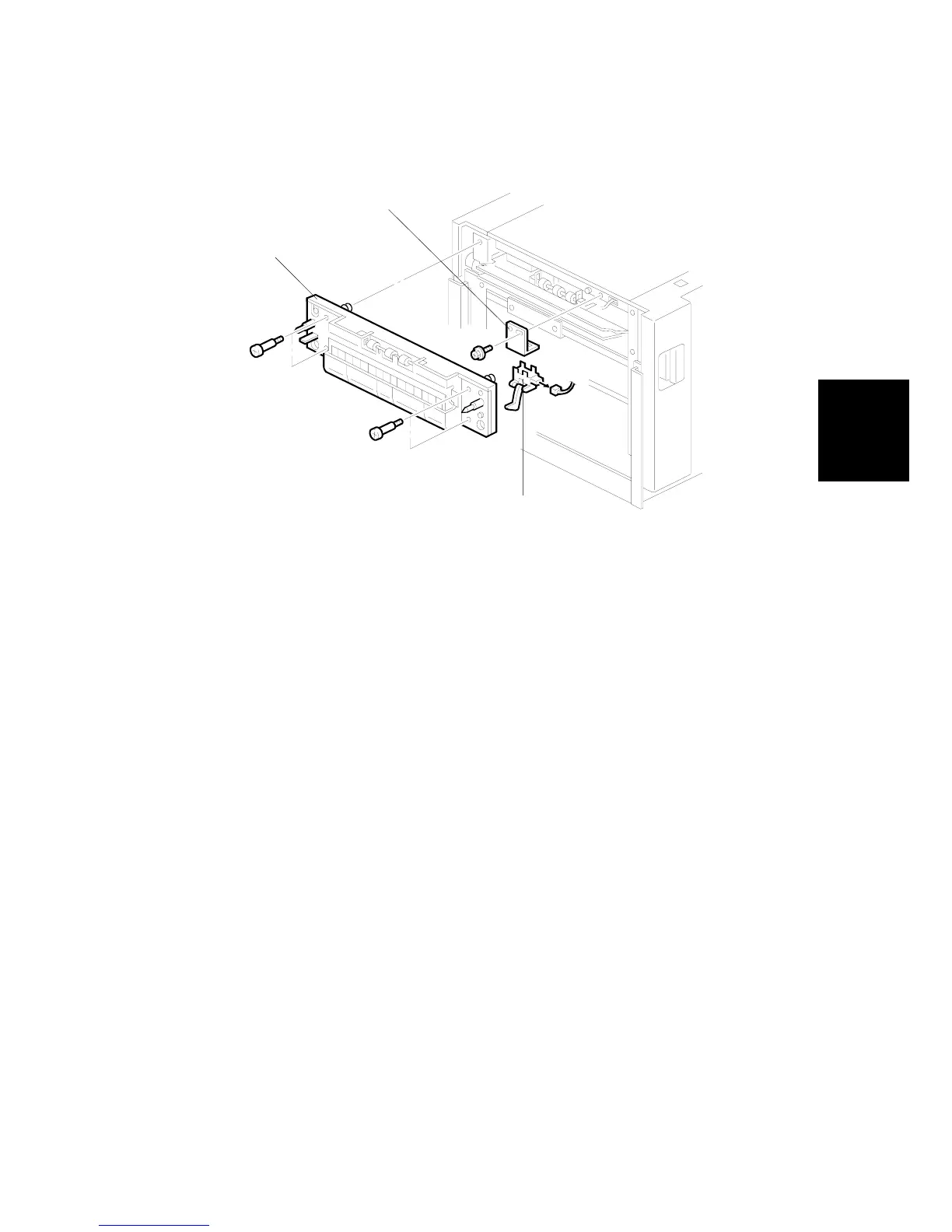

A683R503.WMF
[C]
[A]
[B]
