Ricoh B079 - Exposure Lamp

Replacement
Adjustment
SCANNER UNIT
SM 3-13 B079/B082
3.9.6 EXPOSURE LAMP
1. ARDF (! 3.9.1)
2. Exposure glass (! 3.9.2)
3. Operation panel [A] ( x2,  x1)
4. Slide 1st scanner [B] to the cutout to expose connector and screw.
5. Exposure lamp [C] ( x1,  x1)
NOTE: Never touch the glass surface of the exposure lamp with fingers. Slide
the exposure lamp toward the rear to disengage the tab on its base
from the hole below and then lift out.

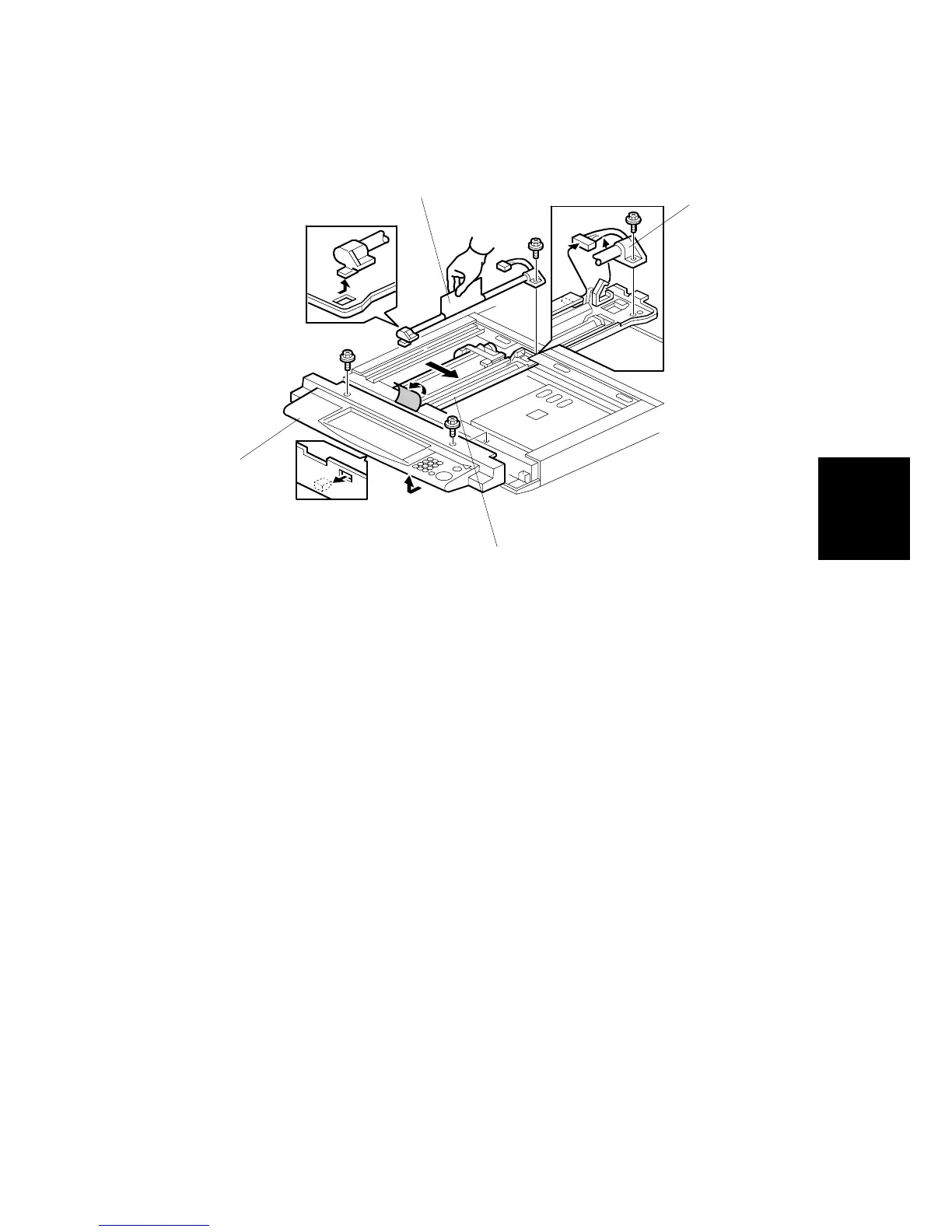

B004R105.WMF
[A]
[B]
[C]
[D]
