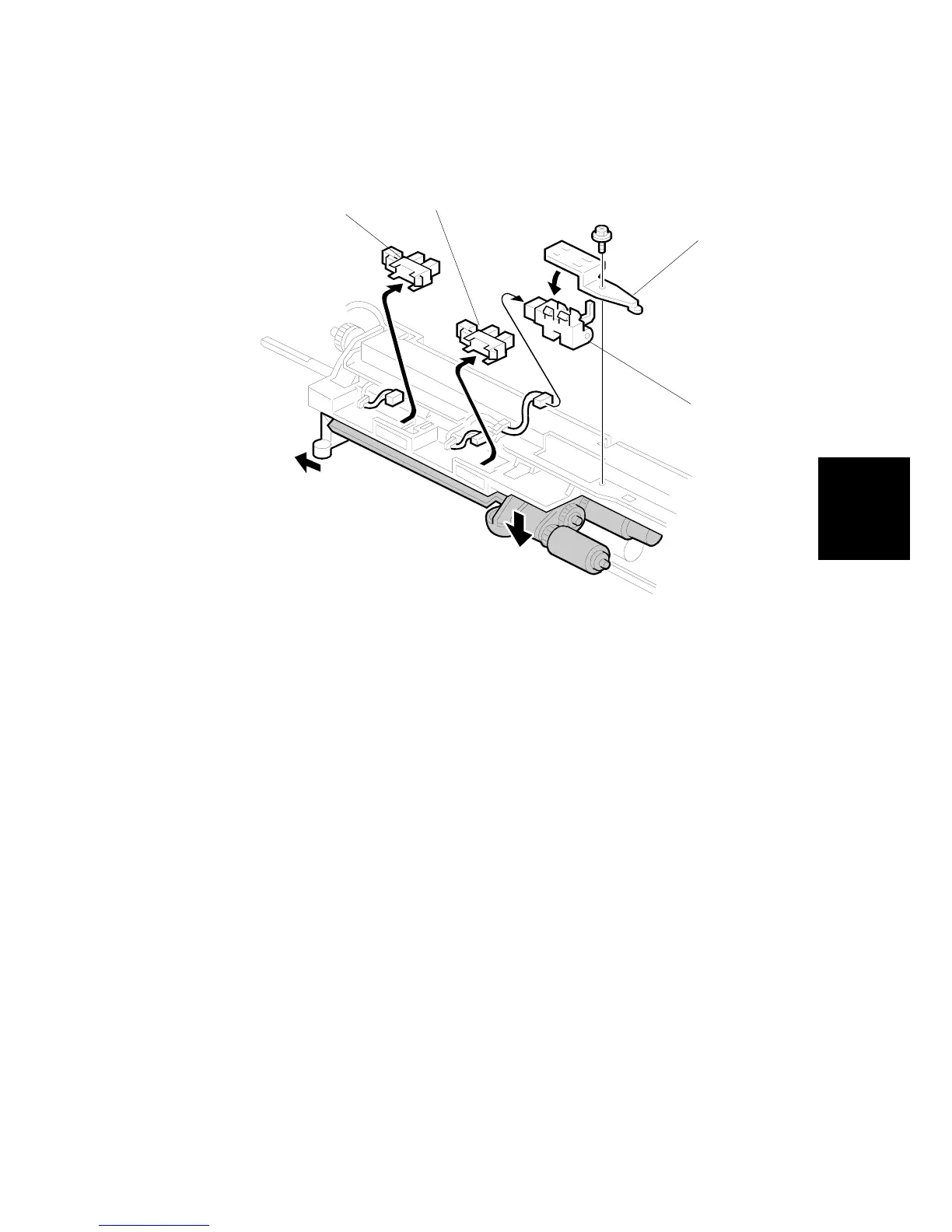

3.14.6 PAPER END/PAPER HEIGHT/RELAY SENSORS
1. Appropriate paper feed unit (! 3.14.4, 3.14.5)
2. Paper height sensor [A] ( x1)
3. Paper end sensor [B] ( x1).
4. Relay sensor bracket [C] ( x1,  x1)
5. Relay sensor [D]
B004R914.WMF
[A]
[B]
[C]
[D]
