6.12.2 BY-PASS TRAY OPERATION

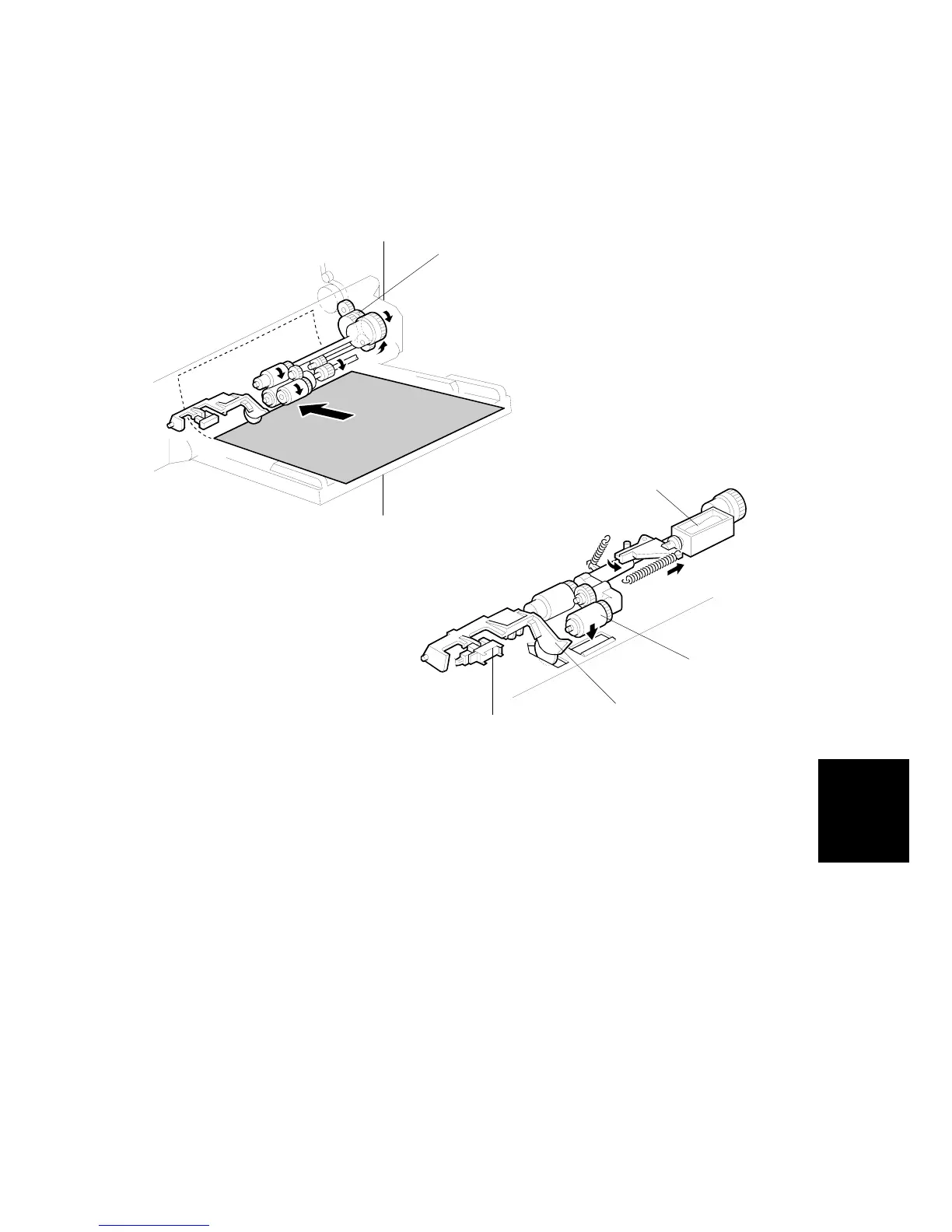

The by-pass unit is directly driven by the copier through gear [A].
When the print key is pressed, the pick-up solenoid [B] turns on and the pick-up
roller [C] moves onto the paper. When the by-pass tray runs out of paper, the
paper end feeler [D] drops into the cutout in the by-pass tray and the paper end
sensor [E] is activated.
B004D500.WMF
B004D501.WMF
[A]
[C]
[B]
[D]
[E]
