Ricoh B079 - Pick-Off Pawl Position Adjustment; Pick-Off Pawls

PHOTOCONDUCTOR UNIT (PCU)
B079/B082 3-30 SM

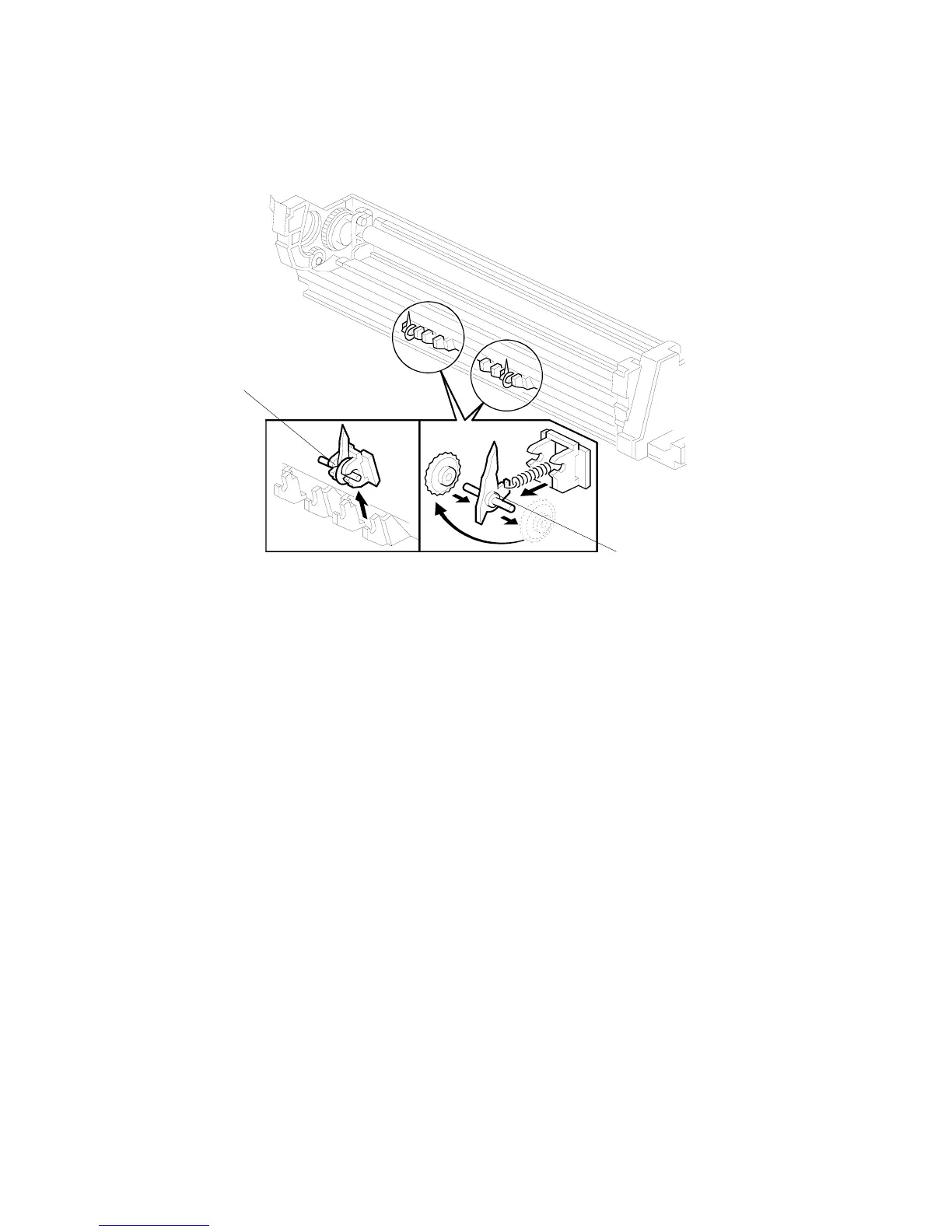

3.11.3 PICK-OFF PAWLS
1. Remove the drum. (! 3.11.2)
2. Pawl assembly [A]
3. Pick-off pawl [B] (spring x 1, spur x 1)
Pick-off pawl position adjustment
If the pick-off pawl has marked the drum with a line, the pick-off pawl position can
be adjusted using either method:
• Changing the spur position.
• Changing the pick-off pawl assembly position
CAUTION: After re-assembly make sure that the front spring of the movable
cleaning blade is re-attached to the #, $ position. (! 3.11.2)
B079R907.WMF
[A]
[B]
