Ricoh B079 - Original Sensors (Width, Length, Trailing Edge)

Bridge Unit
B538
ORIGINAL SENSORS (WIDTH, LENGTH, TRAILING EDGE)
SM 17 B538
3.6 ORIGINAL SENSORS (WIDTH, LENGTH, TRAILING
EDGE)

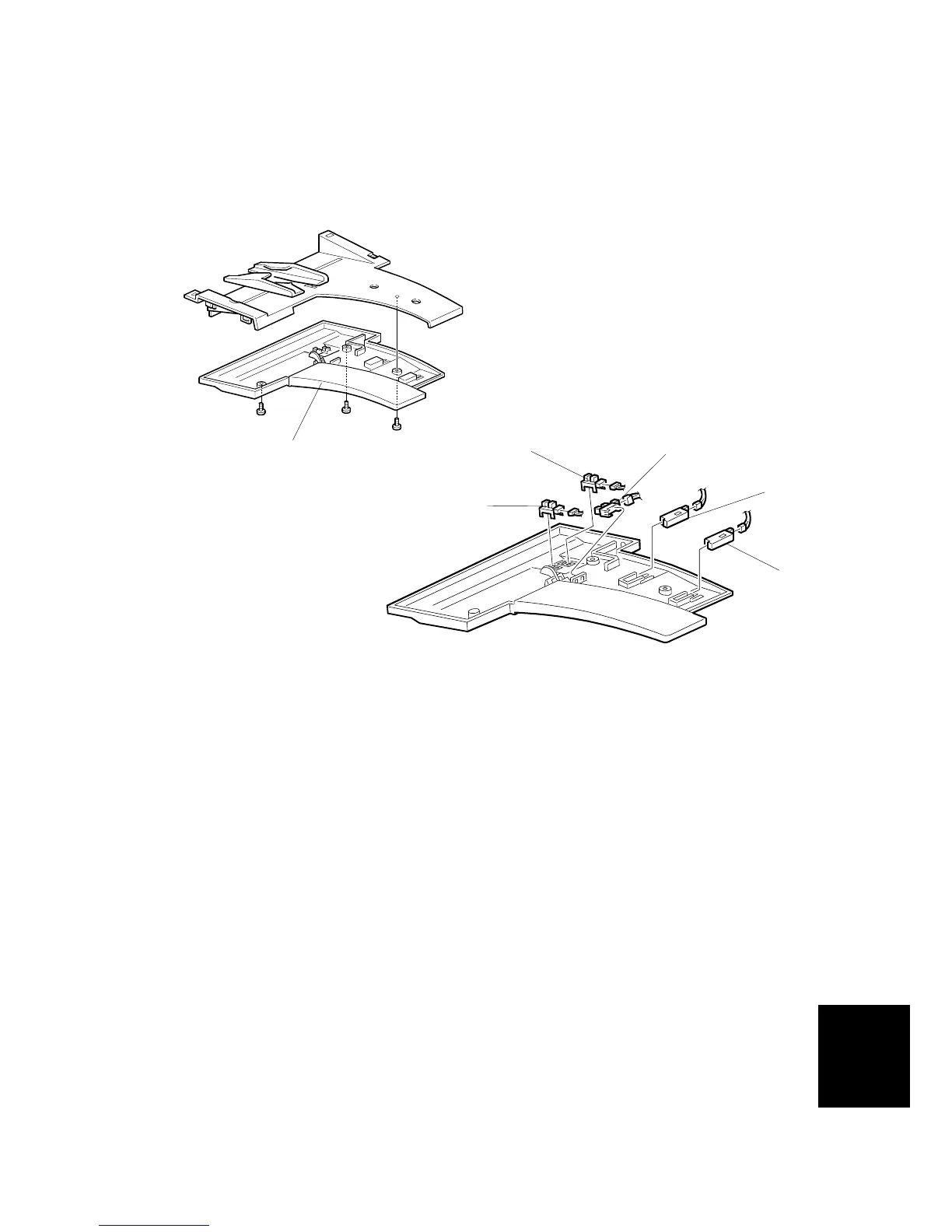

1. Original table (% 1.1.2)
2. Sensor platform [A] ( x 3).
3. Length sensors [B], [C] ( x 1 on each sensor)
NOTE: Replace both sensors at the same time, together with the wiring and
connectors.
4. Width sensors [D], [E], and trailing edge sensor [F] ( x 1 on each sensor)
NOTE: Replace all three sensors at the same time, together with the wiring
and connectors.
B387R107.WMF
B387R108.WMF
[A]
[D]
[E]
[F]
[B]
[C]
