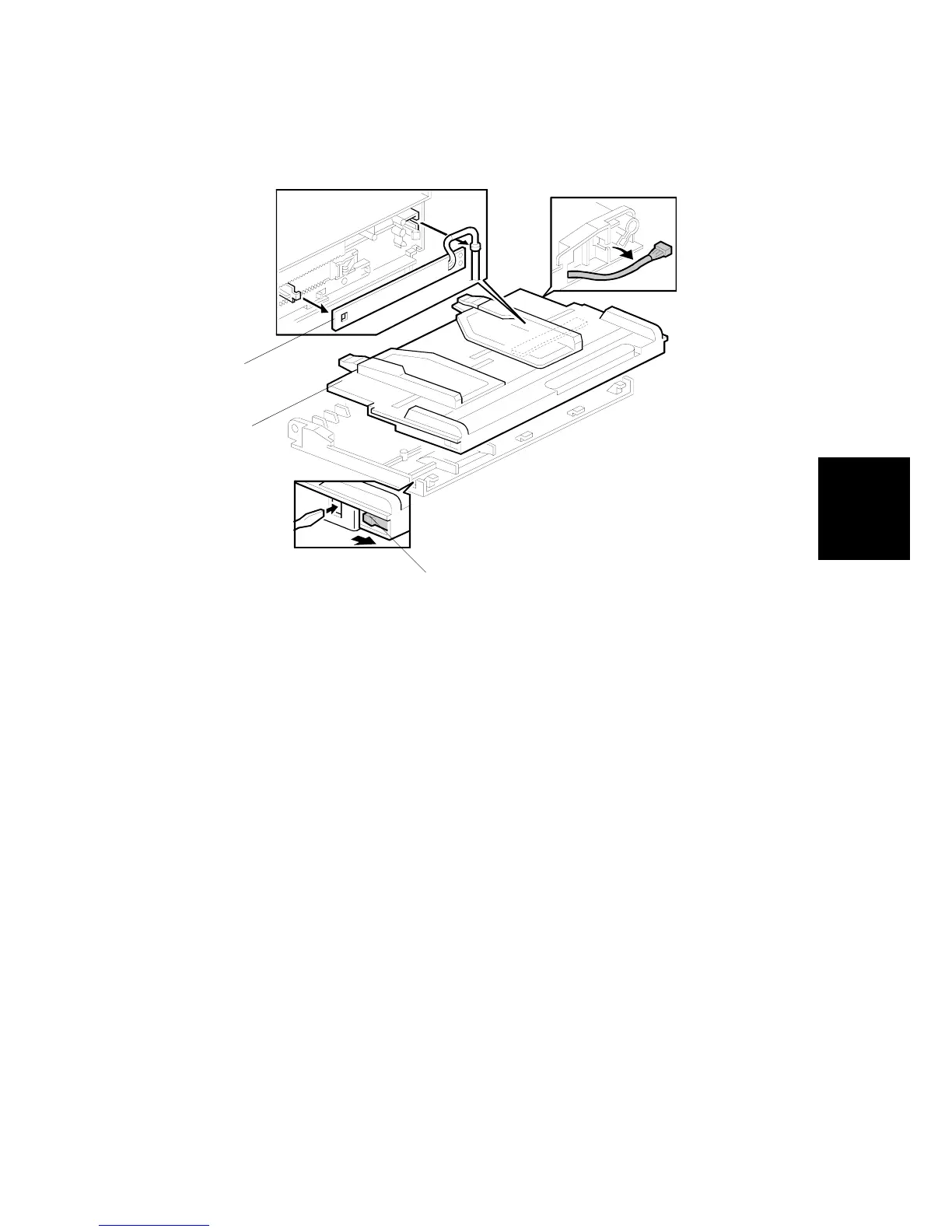

3.16.6 PAPER SIZE SENSOR BOARD REPLACEMENT
1. Hook [A]
2. Paper tray [B] ( x1).
3. Size sensor board [C].
NOTE: To avoid breaking the hook of the paper size sensor board, handle it
carefully during removal.
B004R544.WMF
[C]
[B]
[A]
