IMAGE PROCESSING
B079/B082 6-16 SM
6.5 IMAGE PROCESSING

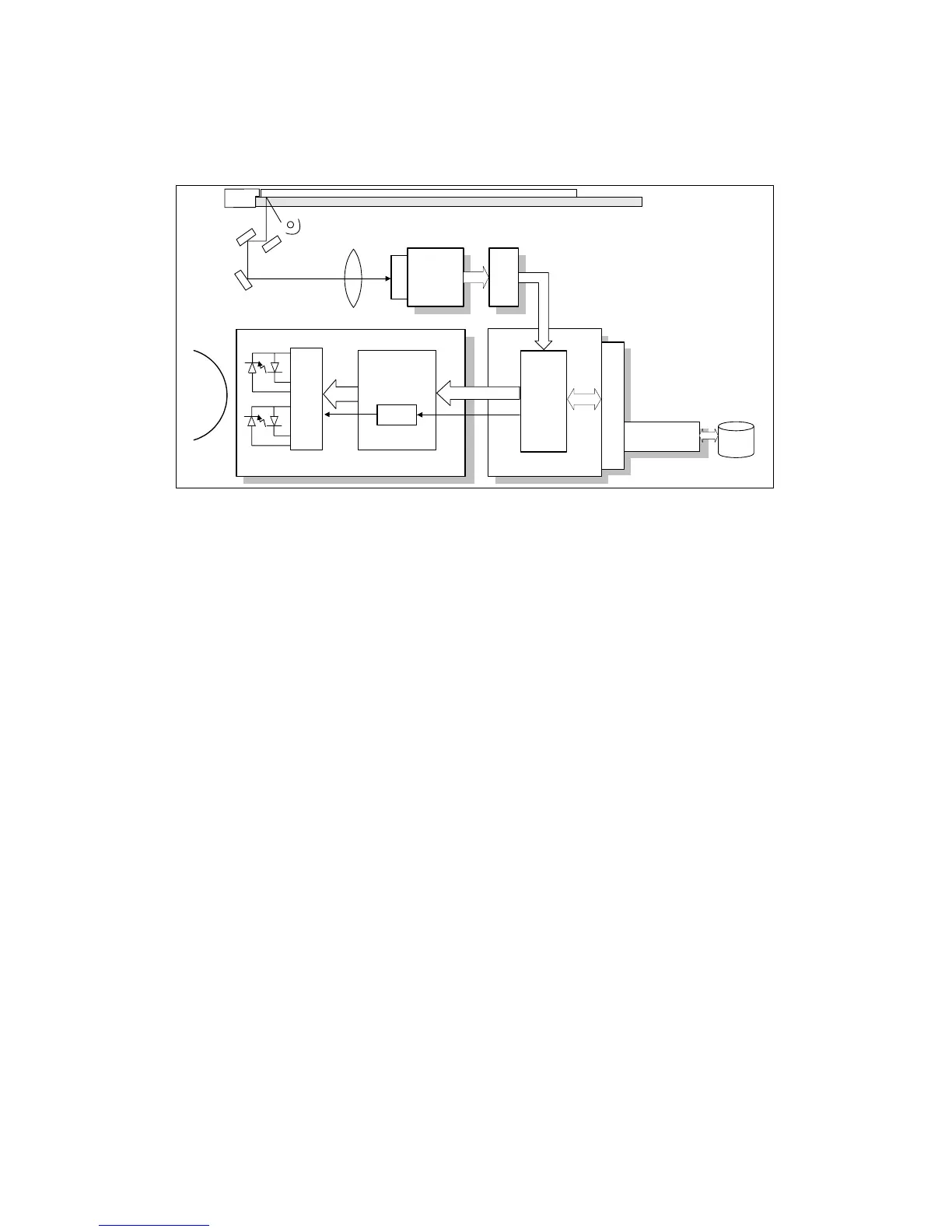

6.5.1 OVERVIEW
SBU: The SBU (Sensor Board Unit) converts the analog signal from the CCD to an
8-bit digital signal and sends it to the SIB.
SIB: The SIB (Scanner Interface Board) relays the image signals and controls the
scanner.
BICU: The BICU (Base Engine Image Control Unit) performs timing control and
command control. The IPU on the BICU processes auto shading, filtering,
magnification, γ correction, and gradation. The memory controller performs image
compression, decompression, and memory address control (for binary picture
processing mode only)
LD Unit: Performs dual channel multi-beam exposure, multiple exposure, and
synchronous detection.
Controller: Controls image archiving, controls printing, and secondary image
compression/decompression.
SIB
IPU
Drum
BICU
LDDR
Controller
SBU
C
C
D
HDD
FCI
LD
Controller
(GAVD)
LD
Driver
SIB
M
o
t
h
e
r
B
o
a
r
d
B079D902.WMF
