Installation
CABINET INSTALLATION PROCEDURE
SM 1-23 B079/B082
1.5 CABINET INSTALLATION PROCEDURE
CAUTION
Unplug the main machine power cord before starting the following
procedure.
1. Unpack the cabinet.
2. Remove all tape and shipping materials.

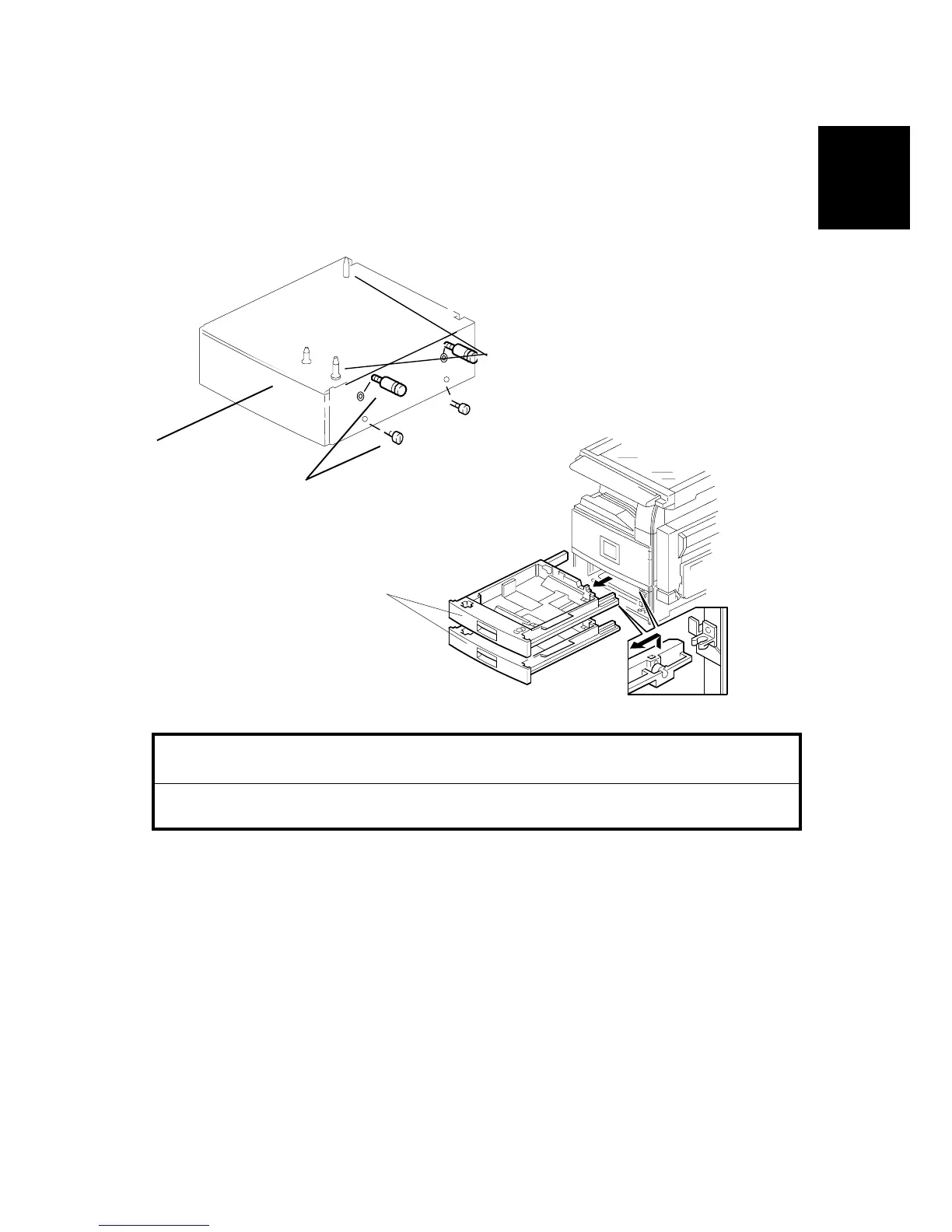

3. Install the 2 longer [A] locating pins and the shorter [B] locating pin.
4. Install the LCT mounting screws [C] (2 types x2).
5. Remove the paper trays [D].
B542I557.WMF
B542I112.WMF
[D]
[B]
[A]
[C]
To Next Page
