FUSING UNIT
SM 3-53 B079/B082
3.15.2 FUSING UNIT EXIT GUIDE
1. Fusing unit (! 3.15.1)

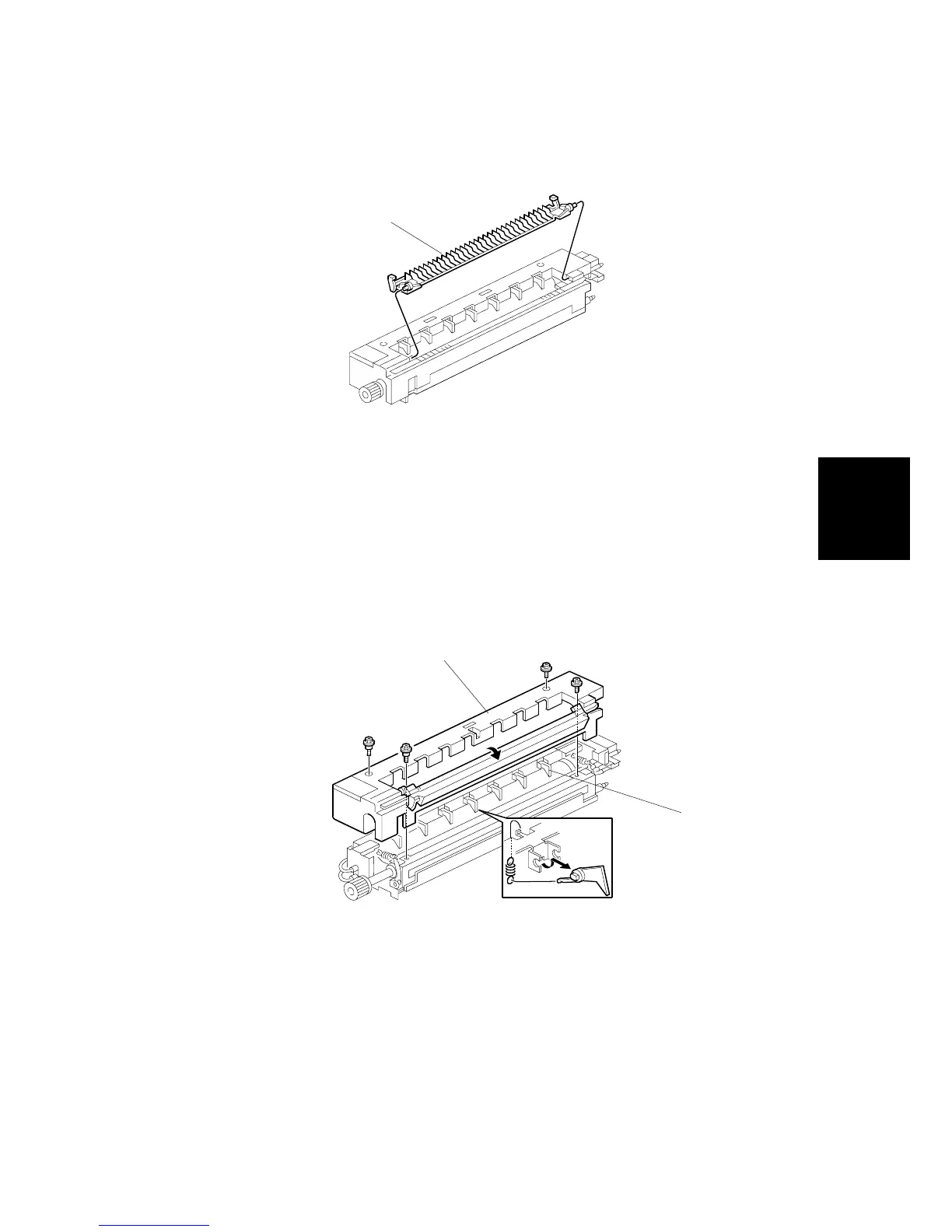

2. Exit guide [A]
NOTE: Press the guide to the left and then press on the right end to release
the peg from the hole.
3.15.3 HOT ROLLER STRIPPERS
1. Fusing unit (! 3.15.1)
2. Fusing unit cover [A] ( x4)
NOTE: Note the positioning of the step screws x2 and the set screws x2.
3. Hot roller strippers x7, springs x7
B004R601.WMF
B004R602.WMF
[A]
[A]
[B]
