Ricoh B079 - Scanner Wire

Replacement
Adjustment
SCANNER UNIT
SM 3-17 B079/B082
3.9.10 SCANNER WIRE
1. ARDF (! 3.9.1)
2. Exposure glass (! 3.9.2)
3. Scanner exterior panels and operation panel (! 3.9.3)

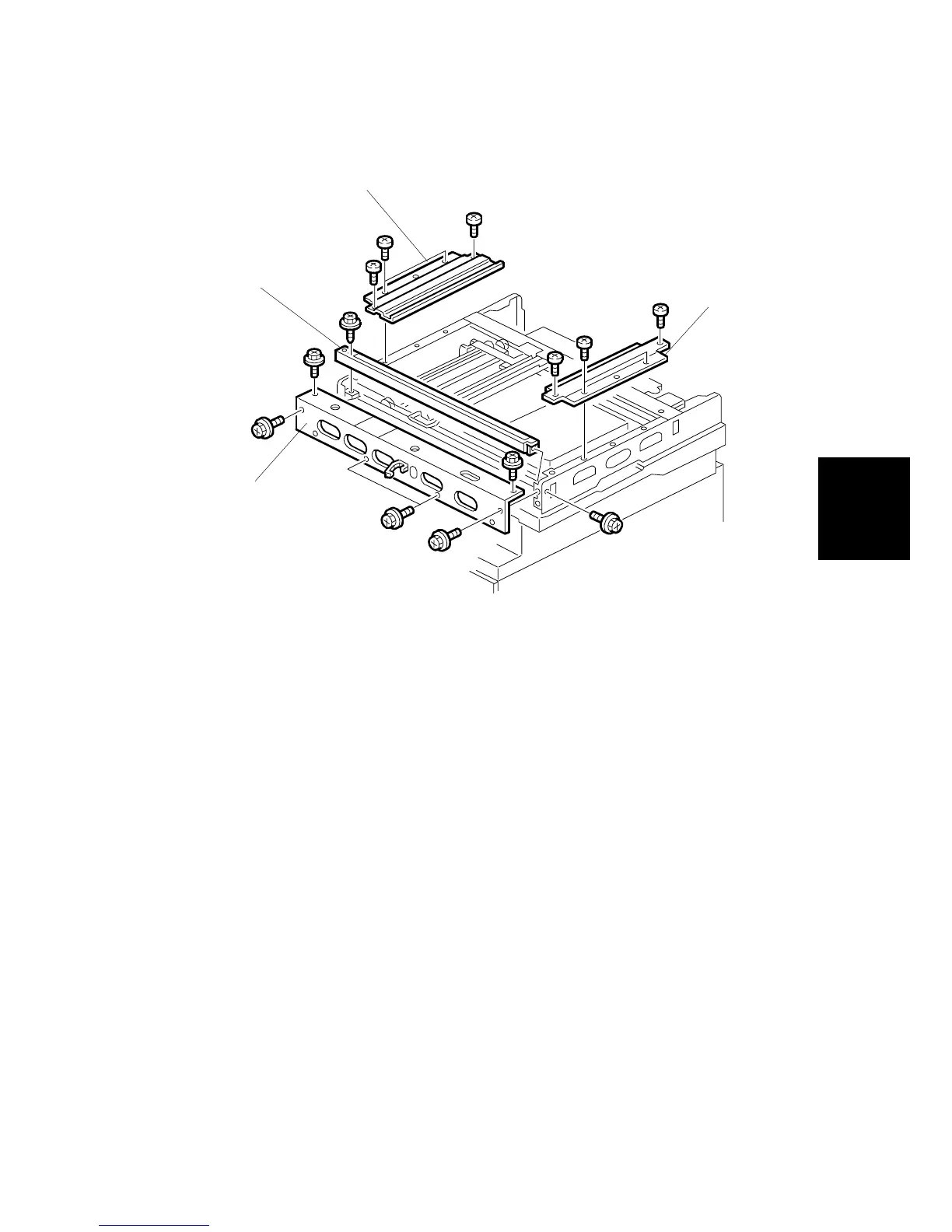

Front wire:
4. Left stay [A] ( x4)
5. Right stay [B] ( x4)
6. Front stay [C] ( x6)
7. Front scanner rail [D] ( x2)
8. To replace the scanner wire, see page 3-19.
B004R109.WMF
[A]
[B]
[C]
[D]
