Ricoh B079 - Scanner Motor and Inverter Motor

SCANNER MOTOR AND INVERTER MOTOR
SM 7 B541
Auto Reverse
Document
Feeder
B541

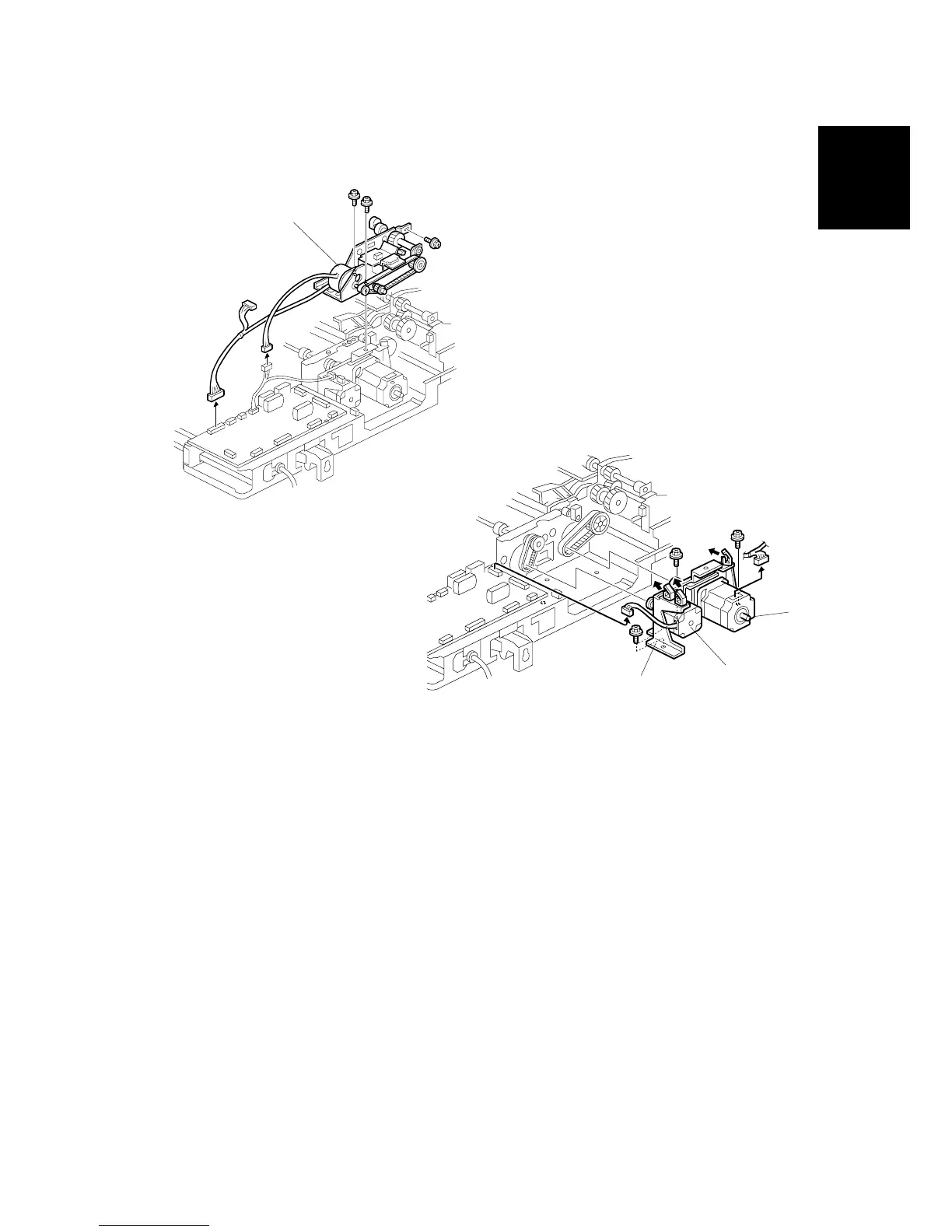

1.10 SCANNER MOTOR AND INVERTER MOTOR
1. Rear cover (! 1.1)
2. Pick-up roller assembly [A] ( x1,  x3,  x3)
3. Motor bracket [B] ( x3,  x2, Timing belt x2)
4. Scanner motor [C] ( x2)
NOTE: To re-install the scanner motor, secure the motor after the motor
bracket has been installed.
5. Inverter motor [D] ( x2)
B351R113.WMF
B351R112.WMF
[A]
[B]
[C]
[D]
