4.5 ORIGINAL TRANSPORT AND EXIT
4.5.1 SINGLE-SIDED ORIGINALS
The transport motor drives the transport roller [A] and the exit roller [B]. When the
leading edge of the original activates the interval sensor [C], the transport motor
rotates the transport roller. The transport roller then feeds the original through
scanning area. After scanning, the original is fed out by the exit roller to the exit
tray.

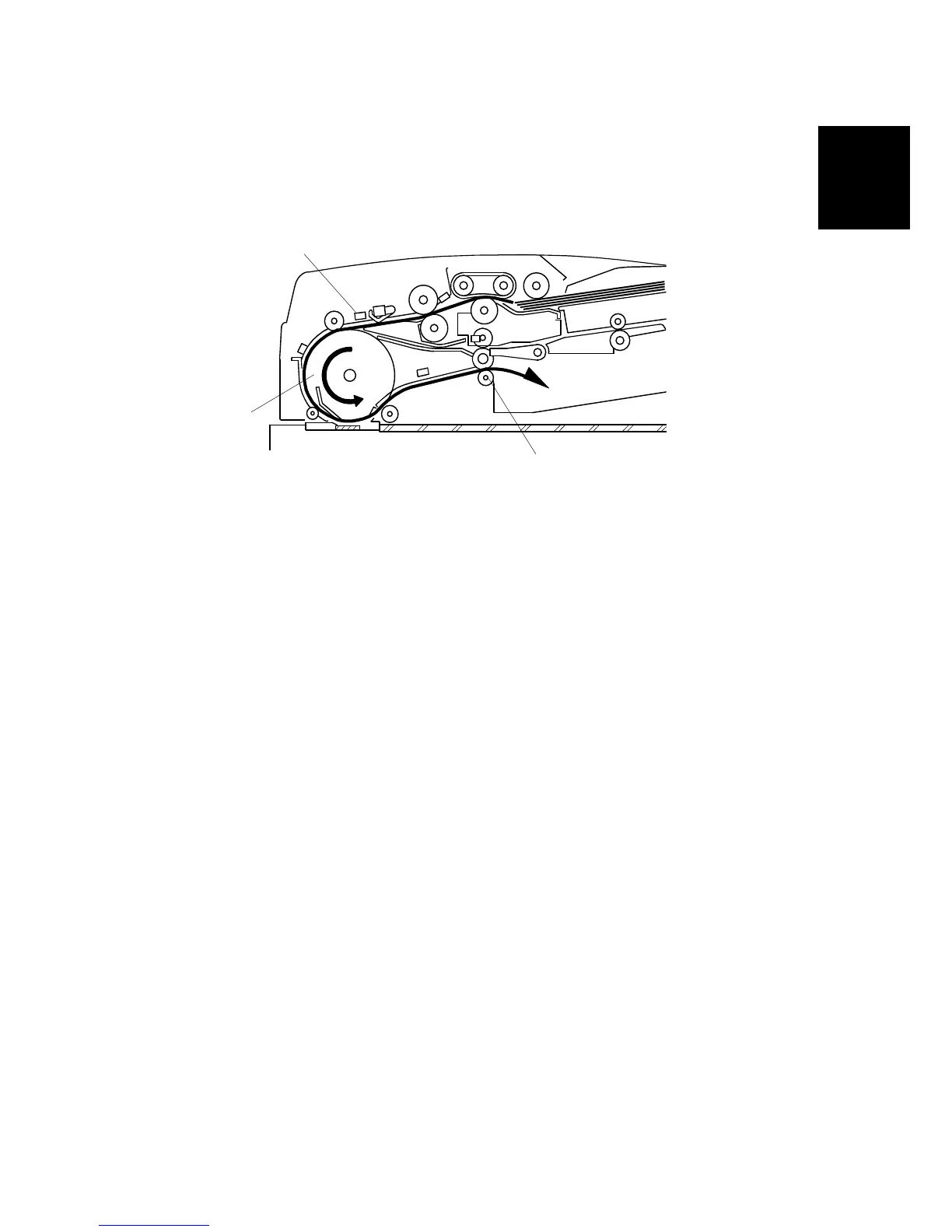

B351D104.WMF
[A]
[B]
[C]
