Ricoh B079 - Development Filter; Development Roller

Replacement
Adjustment
DEVELOPMENT
SM 3-35 B079/B082

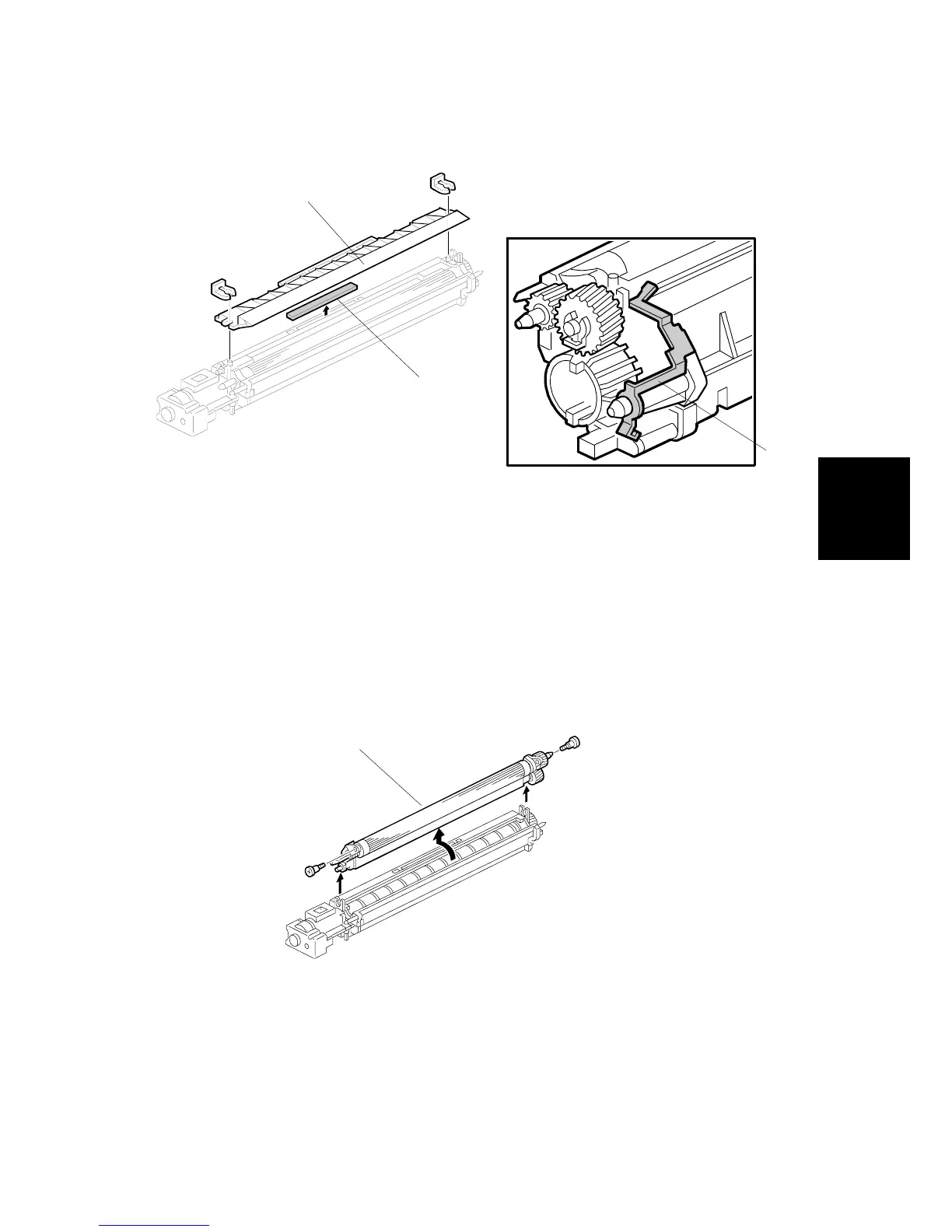

3.12.2 DEVELOPMENT FILTER
1. Development unit (! 3.12.1)
2. Upper development cover [A] ( x 2)
3. Development filter [B]
NOTE: Make sure that the surface with the red mark is facing up.
4. Make sure that the ground plate [C] is positioned correctly.
3.12.3 DEVELOPMENT ROLLER
1. Development unit (! 3.12.1)
2. Upper development cover (! 3.12.2)
3. Development roller [A] ( x2)
NOTE: Work carefully to avoid scratching or nicking the development roller.
