LASER UNIT
B079/B082 3-22 SM
3.10.2 LASER UNIT
WARNING
Turn off the main power switch and unplug the machine before attempting
this procedure. Laser beams can seriously damage your eyes.

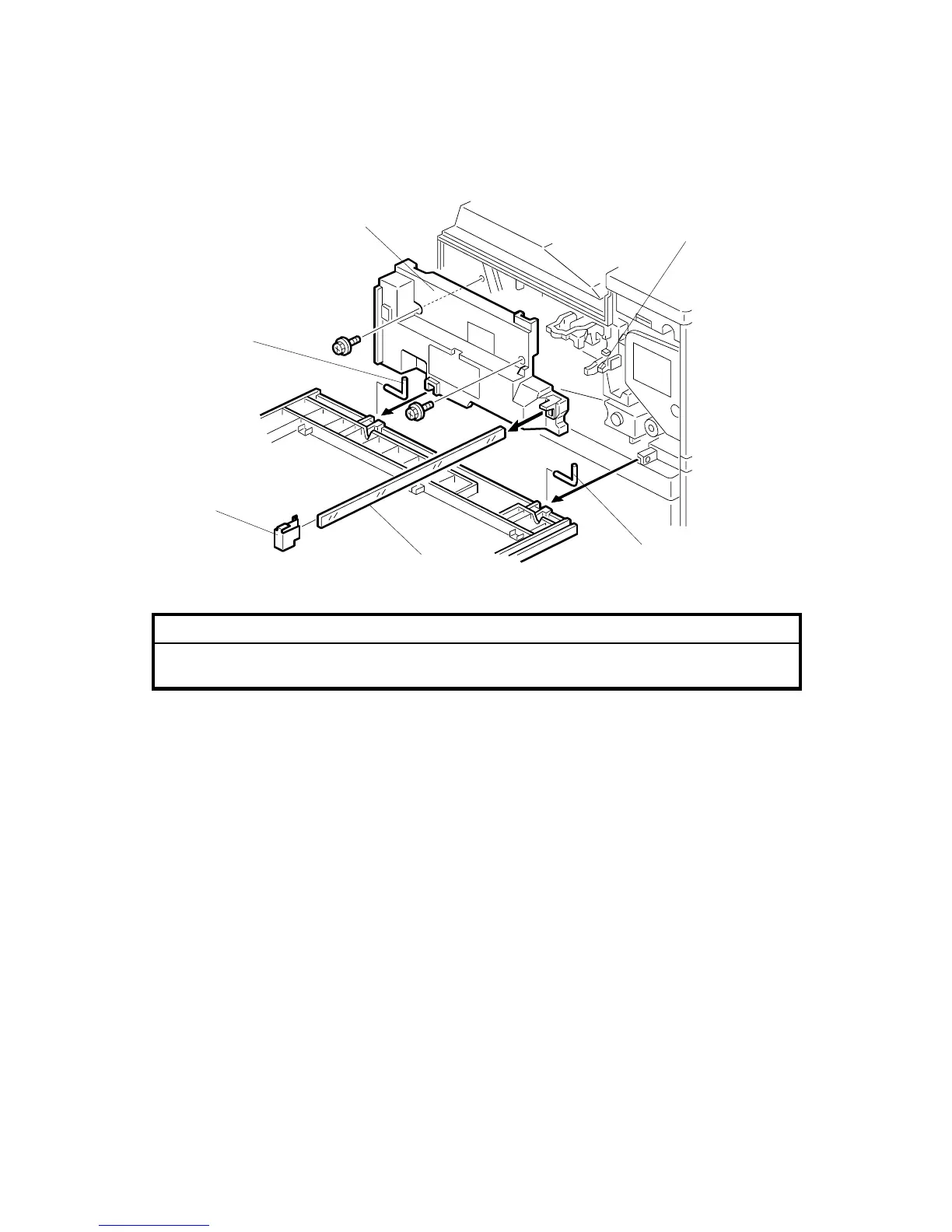

1. Open the front door and raise the toner bottle holder handle [A].
2. Front door (pins [B] x 2)
3. Inner cover [C] ( x 2, x 1)
4. Shield glass cover [D].
The shield glass cover holds the shield glass firmly in place and prevents it
from accidental removal.
To remove, on the left side press in the top leaf and pull off.
When re-attaching the shield glass cover, note that the top leaf lies on top of
the plastic form.
5. Shield glass [E]
B079R211.WMF
[A]
[C]
[B]
[D]
[E]
[B]
