ROLLER REPLACEMENT
SM 13 B542
4.2 ROLLER REPLACEMENT
4.2.1 PAPER FEED, SEPARATION, AND PICK-UP ROLLERS
1. Remove the paper tray.
Pick-up Roller
2. Replace the pick-up roller [A].
Paper Feed Roller
2. Replace the paper feed roller [B] (1 snap ring).
Separation Roller
2. Replace the separation roller [C] (1 snap ring).

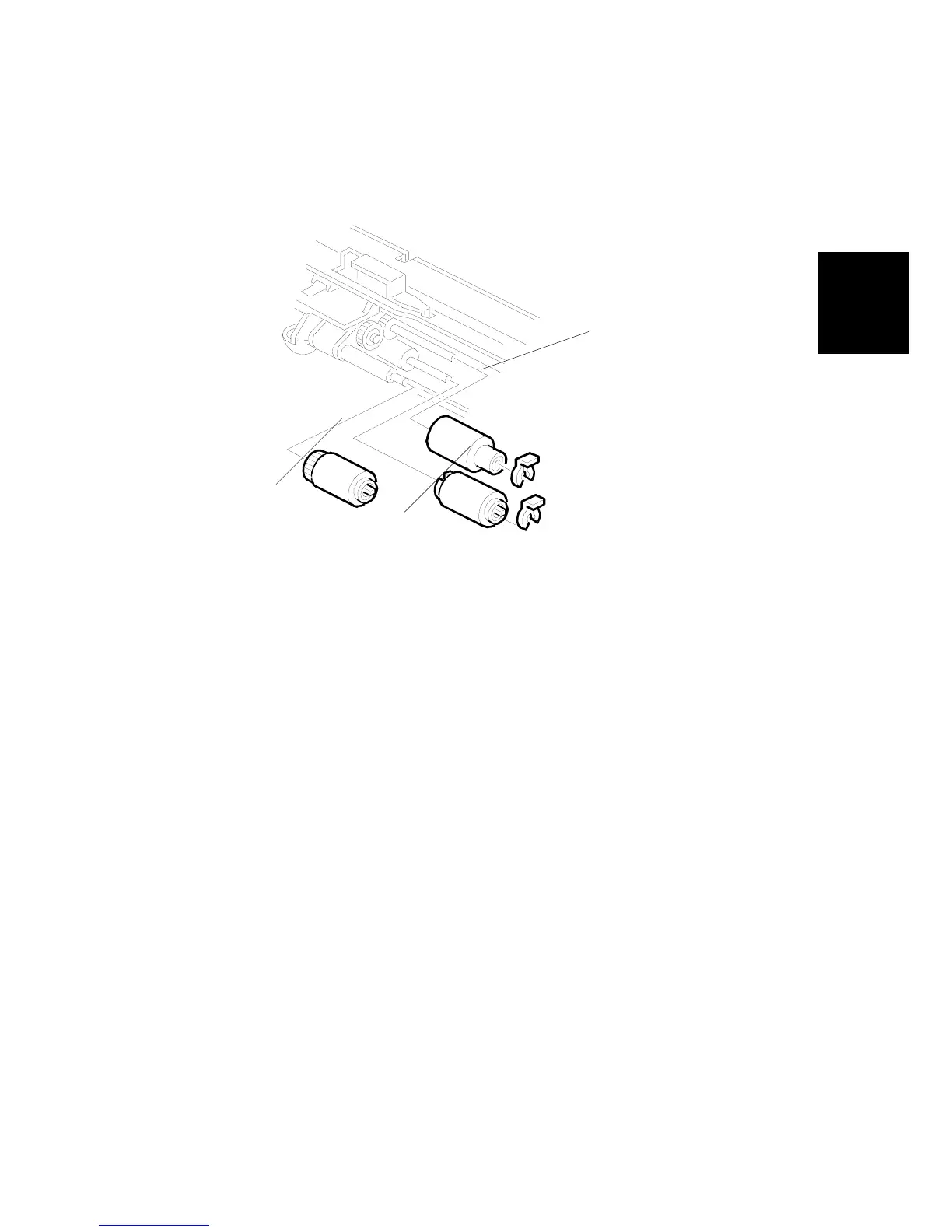

A682R501.WMF
[B]
[C]
[A]
