Replacement
Adjustment
SM 3-65 B079/B082
3.16.4 BY-PASS SEPARATION ROLLER REPLACEMENT
1. Close by-pass table.

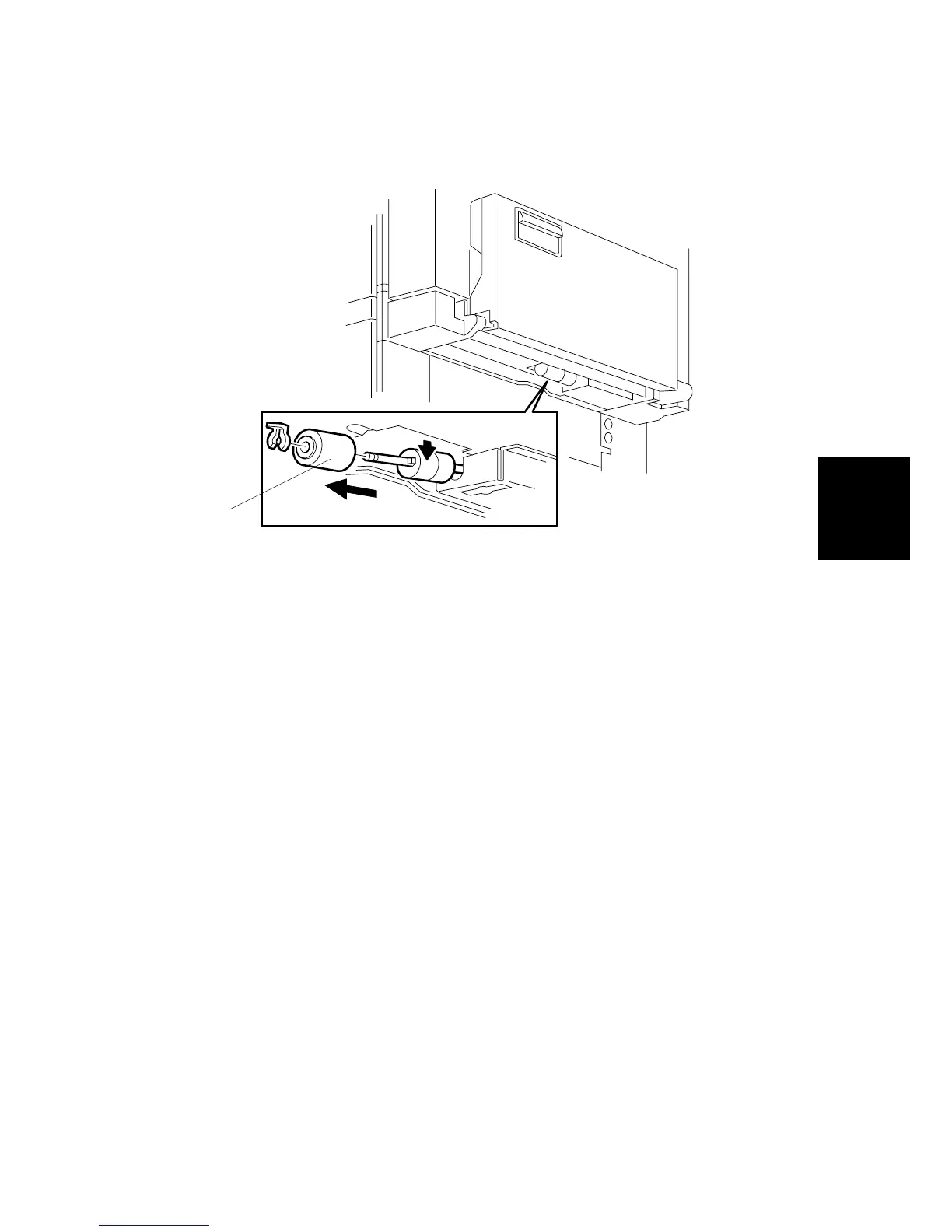

2. Remove separation roller [A] from the bottom ( x1)
A689R502.WMF
[A]
CÓPIA NÃO CONTROLADA
CÓPIA NÃO CONTROLADA
