Ricoh B079 - Booklet Stapler Unit; Removal

REMOVAL
B546 34 SM
3.1.16 BOOKLET STAPLER UNIT
Removal

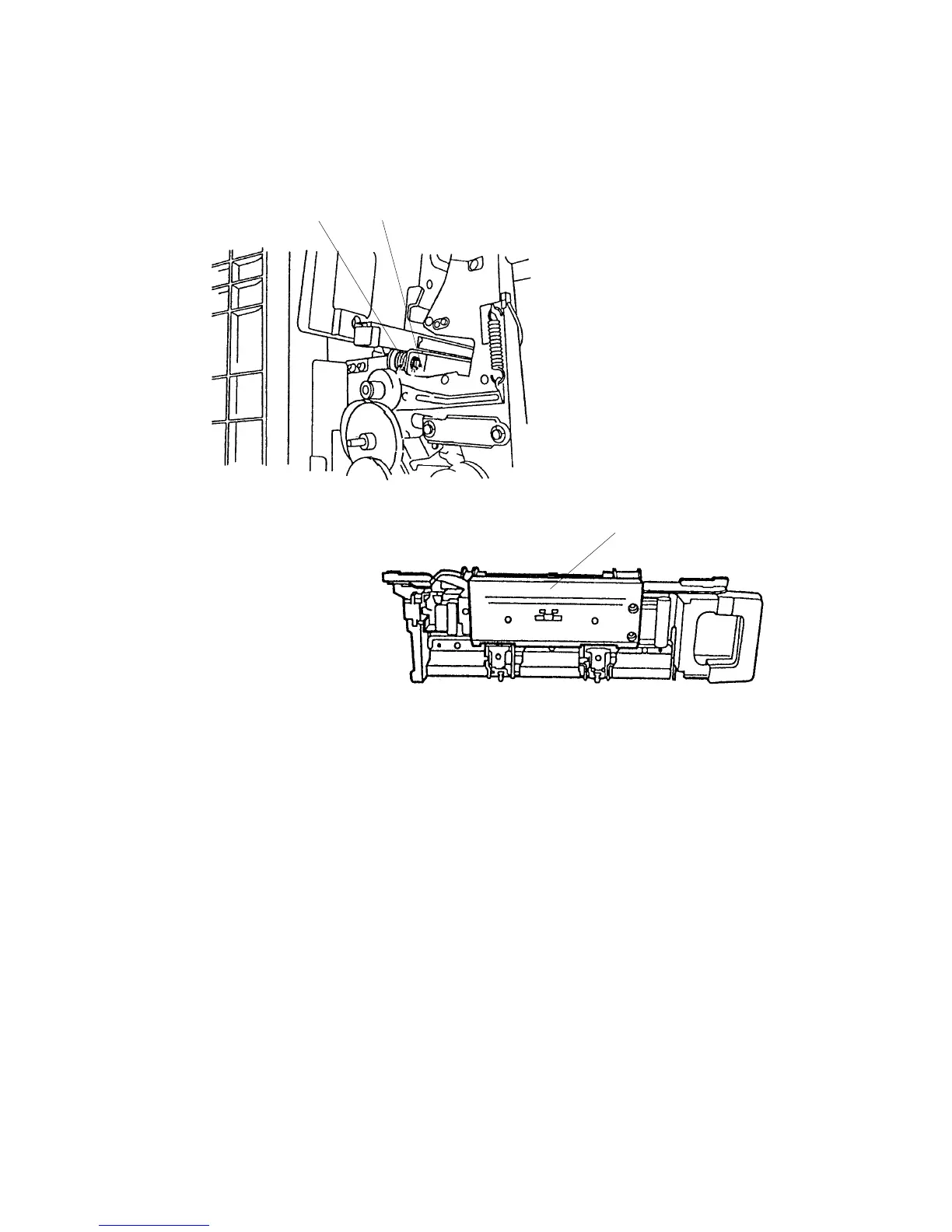

1. Remove the lower door and inner cover.
2. Remove the guide roller [A] and shaft [B] (1 E-ring).
3. Pull out the booklet stapler unit [C].
B546R562.PC
X
B546R563.PC
X
[A]
[B]
[C]
