PAPER END, TRAY LIFT, AND RELAY SENSOR REPLACEMENT
B542 18 SM
4.6 PAPER END, TRAY LIFT, AND RELAY SENSOR
REPLACEMENT

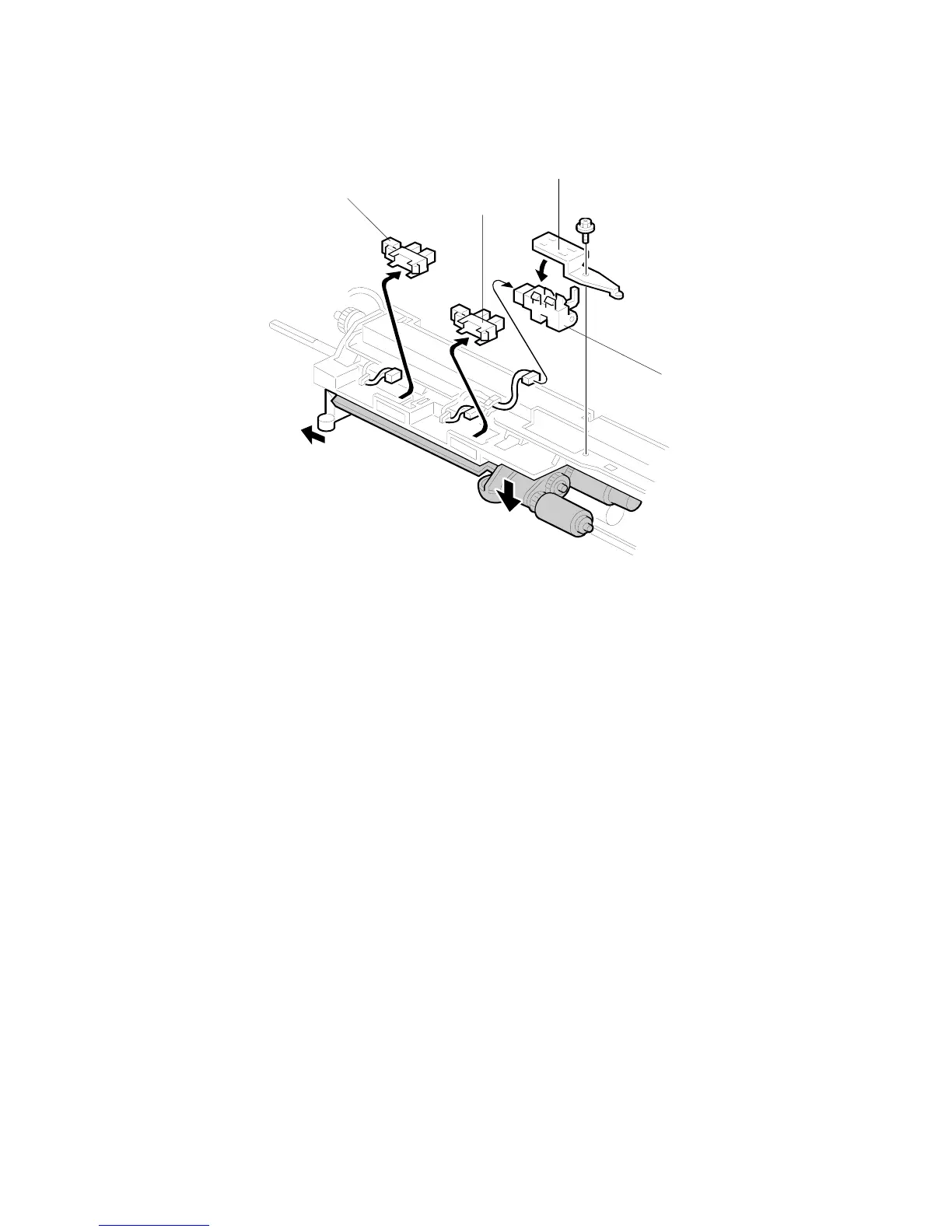

1. Remove the paper feed unit.
Paper End Sensor
2. Replace the paper end sensor [A] (1 connector).
Tray Lift Sensor
2. Replace the tray lift sensor [B] (1 connector).
Relay Sensor
2. Remove the sensor bracket [C] (1 screw).
3. Replace the relay sensor [D] (1 connector).
A682R508.WMF
[A]
[D]
[B]
[C]
