ORIGINAL FEED-IN MECHANISM
SM 19 B541
Auto Reverse
Document
Feeder
B541
4.4 ORIGINAL FEED-IN MECHANISM
4.4.1 PICK AND SEPARATION

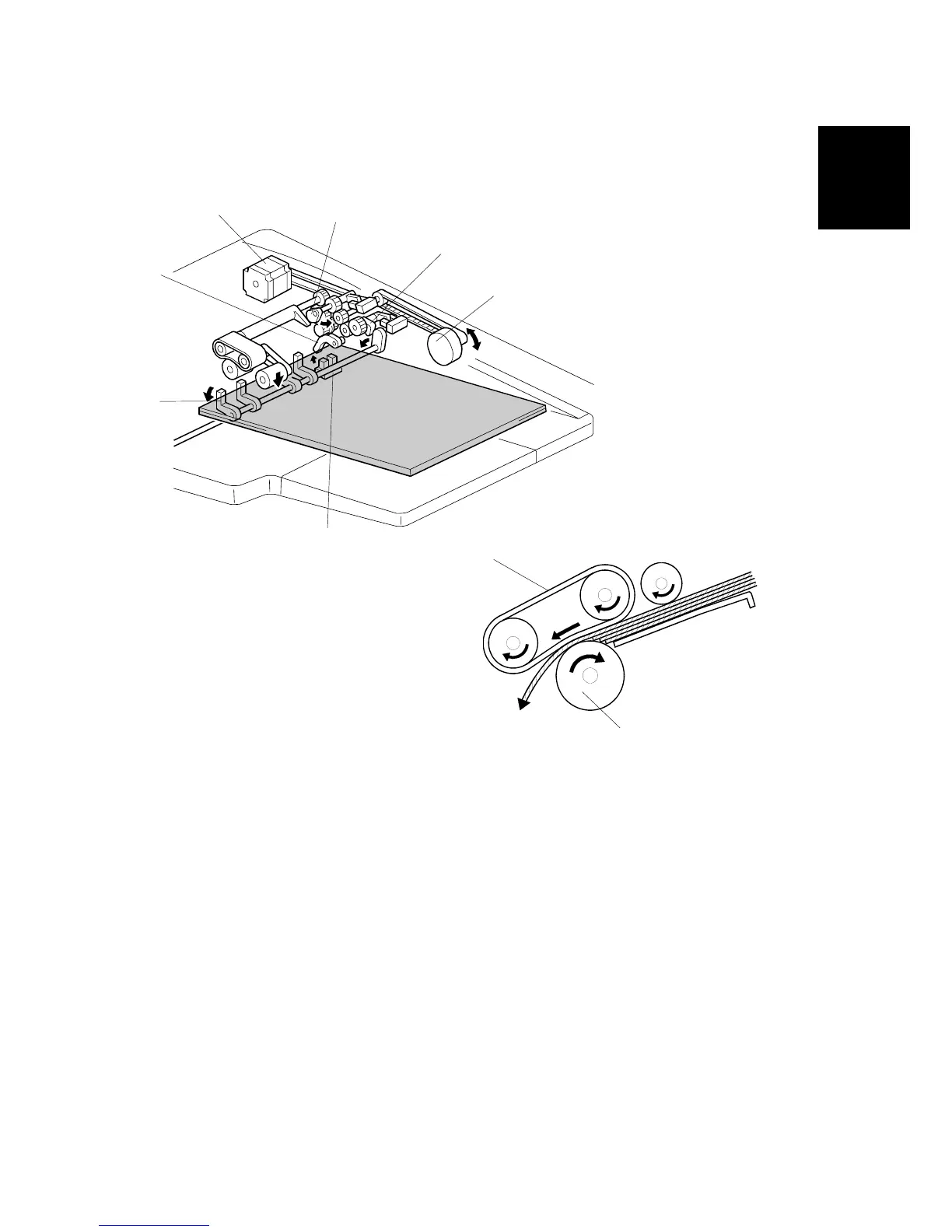

When the original is set on the original table, it contacts the original stopper [A] and
pushes the actuator [B] out of the original set sensor [C].
When Start  is pressed, the pick-up motor [D] turns on and the original stopper
cam [E] rotates. The original stopper lowers and releases the original.
Next, the pick-up roller cam [F] lowers the pick-up roller, and then the feed motor
[G] turns on to feed the top sheet of paper. After being fed from the pick-up roller,
the top sheet is separated from the stack by the separation roller [H] and the feed
belt [I].
B351D109.WMF
A858D505.WMF
[H]
[I]
[A]
[B]
[C]
[D]
[E]
[F]
[G]
