Ricoh B079 - Adf Image Adjustment

COPY ADJUSTMENTS: PRINTING/SCANNING
B079/B082 3-86 SM
3.21.3 ADF IMAGE ADJUSTMENT
Registration

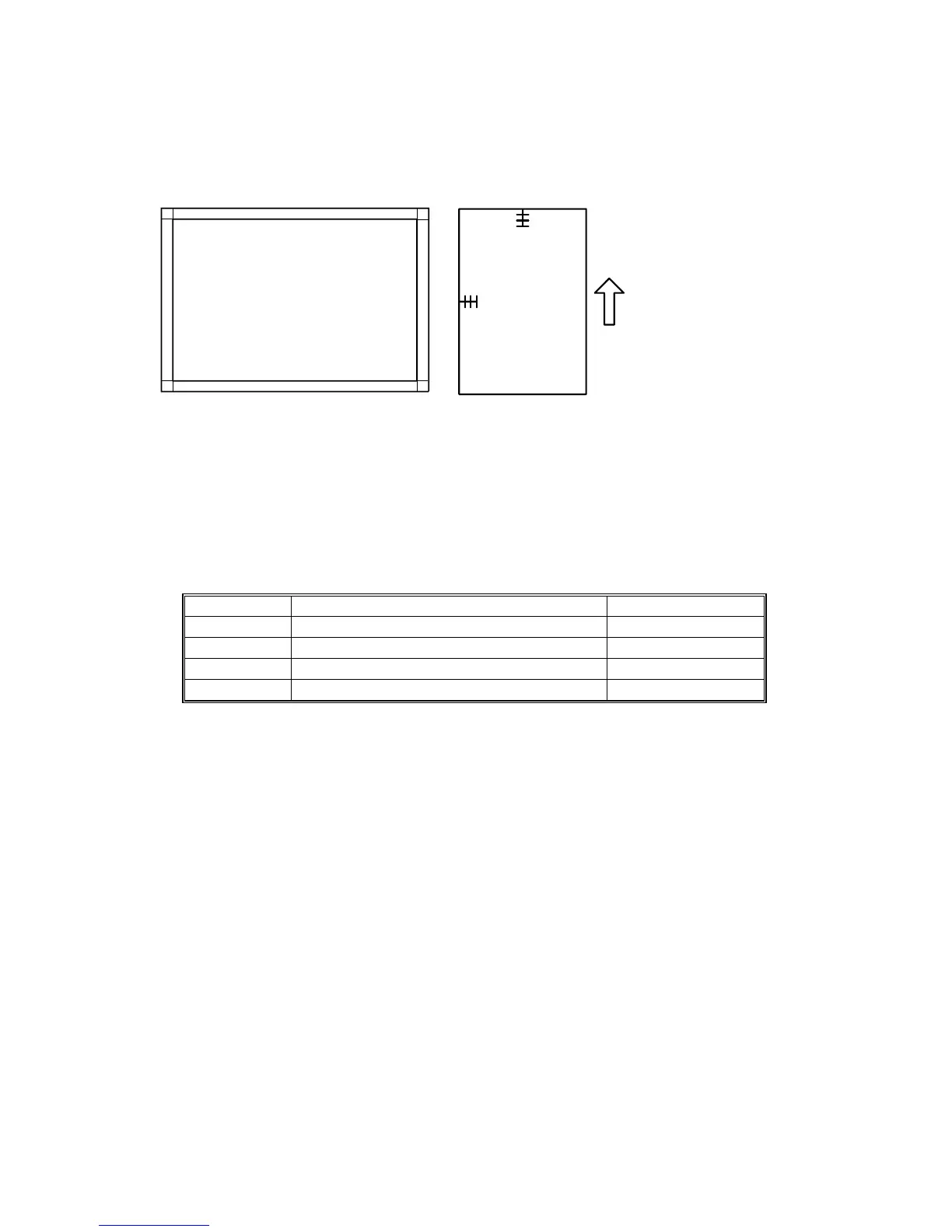

1. Make a temporary test chart as shown above using A3/DLT paper.
2. Place the temporary test chart on the ADF and make a copy from one of the
feed stations.
3. Check the registration, and adjust using the following SP modes if necessary.
SP Code What It Does Adjustment Range
SP6-006-1 Side-to-Side Registration
±3.0 mm
SP6-006-2 Leading Edge Registration (Simplex)
±3.0 mm
SP6-006-3 Leading Edge Registration (Duplex: Front)
±4.2 mm
SP6-006-4 Leading Edge Registration (Duplex: Back)
±4.2 mm
B004R511.WMF
B
A
B004R508.WMF
A
: Leading edge registration
B: Side-to-side registration
