STAPLER UNIT
SM 9 B545
Two-Tray
Finisher
B545
1.12 STAPLER UNIT

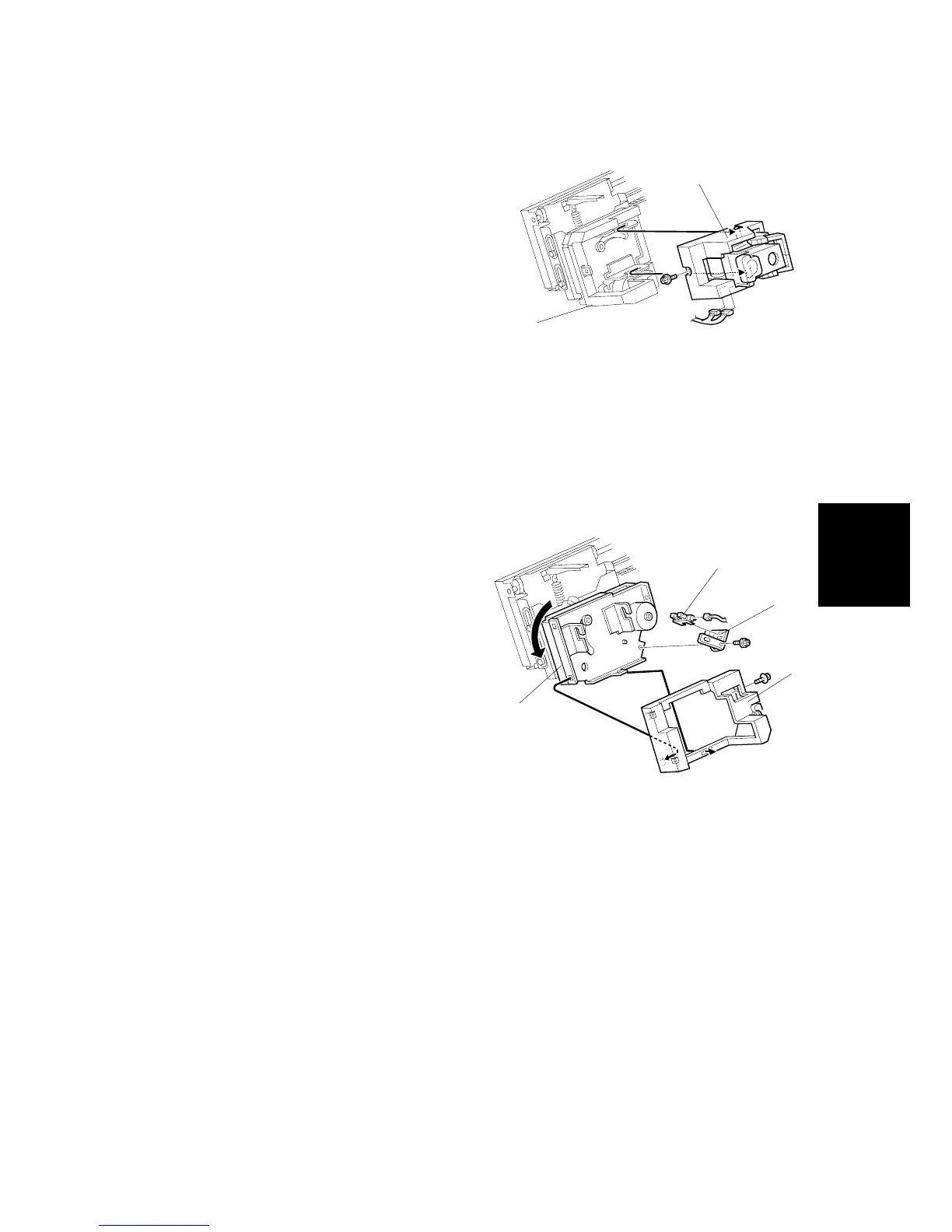

1. Open the front door
2. Stapler unit [A] ( x1,  x2)
Hold the stapler holder [B] with one
hand as you remove the
stapler. Do not twist or rotate
the stapler bracket as you
remove it.
1.13 STAPLER ROTATION HP SENSOR
1. Stapler unit (! 1.12)
2. Carefully rotate the stapler holder
[A].
3. Stapler cover [B] ( x1)
4. Sensor bracket [C] ( x1,  x1)
5. Stapler rotation HP sensor [D]
B352R117.WMF
B352R118.WMF
[A]
[B]
[B]
[A]
[C]
[D]
