IMAGE FUSING AND PAPER EXIT
B079/B082 6-92 SM
6.15.6 PRESSURE ROLLER

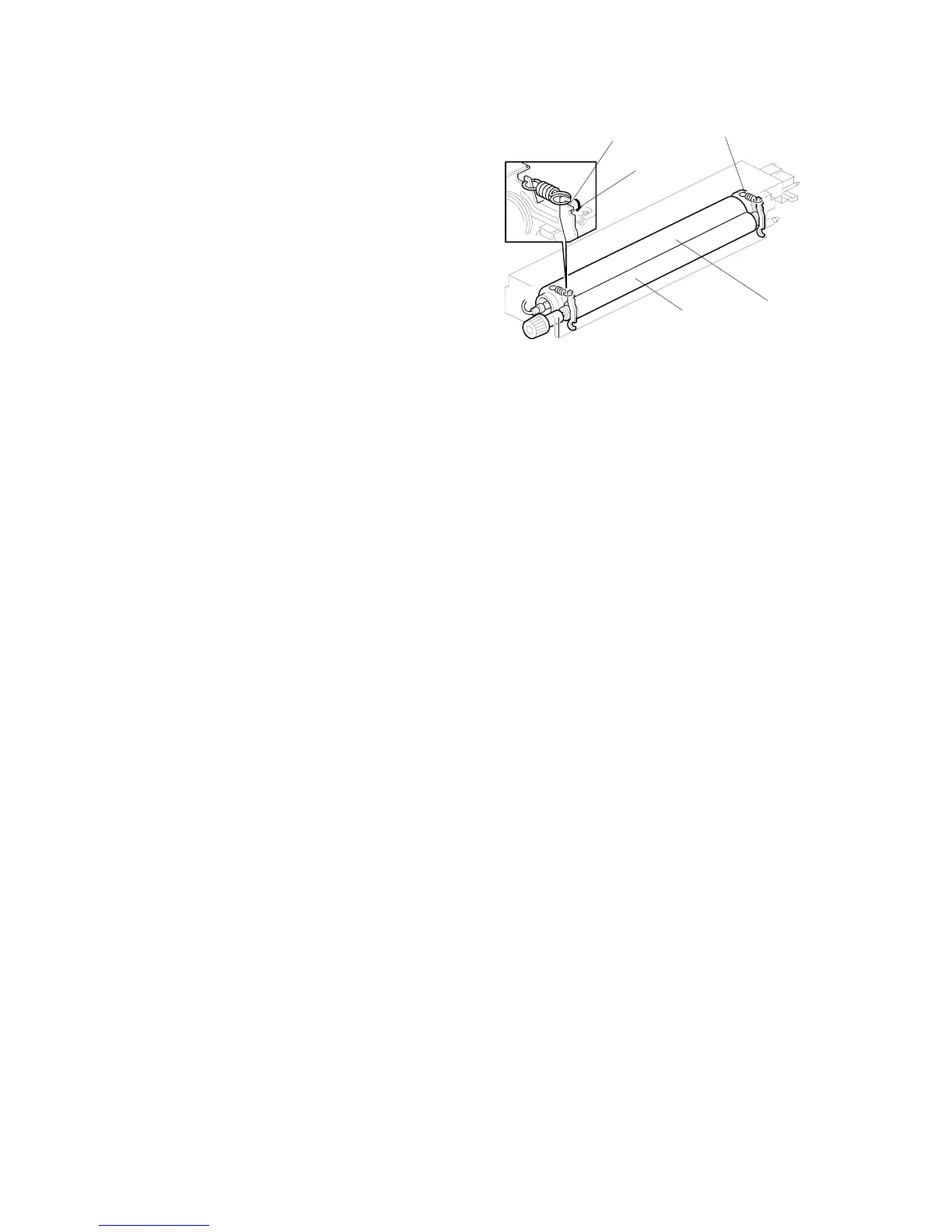

The pressure springs [A] apply constant
pressure between the hot roller [B] and
the pressure roller [C]. The applied
pressure can be changed by adjusting the
position of the pressure springs. The left
position [D] is the normal setting, and the
right position [E] increases the pressure to
prevent insufficient fusing by the fusing
unit.
