LOWER STACK HEIGHT SENSORS
B545 8 SM

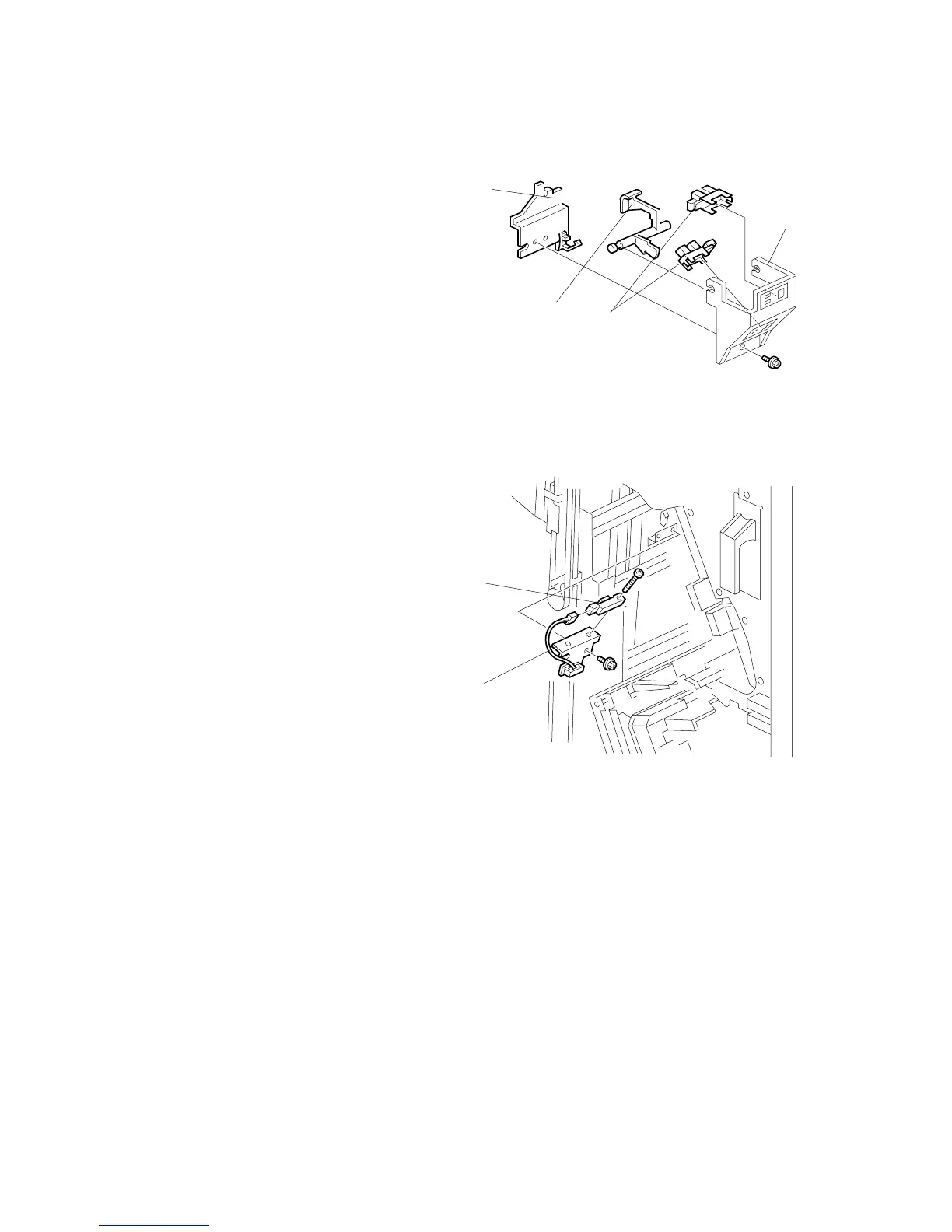

1.10 LOWER STACK HEIGHT SENSORS
1. Stapler tray (! 1.5)
2. Sensor bracket [A] ( x1,  x2)
3. Bracket [B] ( x1)
4. Feeler [C]
5. Lower stack height sensors [D]
1.11 TRAY 2 SHUNT POSITION SENSOR
1. Stapler tray (! 1.5)
2. Sensor bracket [A] ( x1,  x1)
3. Tray 2 position shunt sensor [B] ( x1)
