1.4 ENTRANCE SENSOR/STAPLER TRAY ENTRANCE
SENSOR

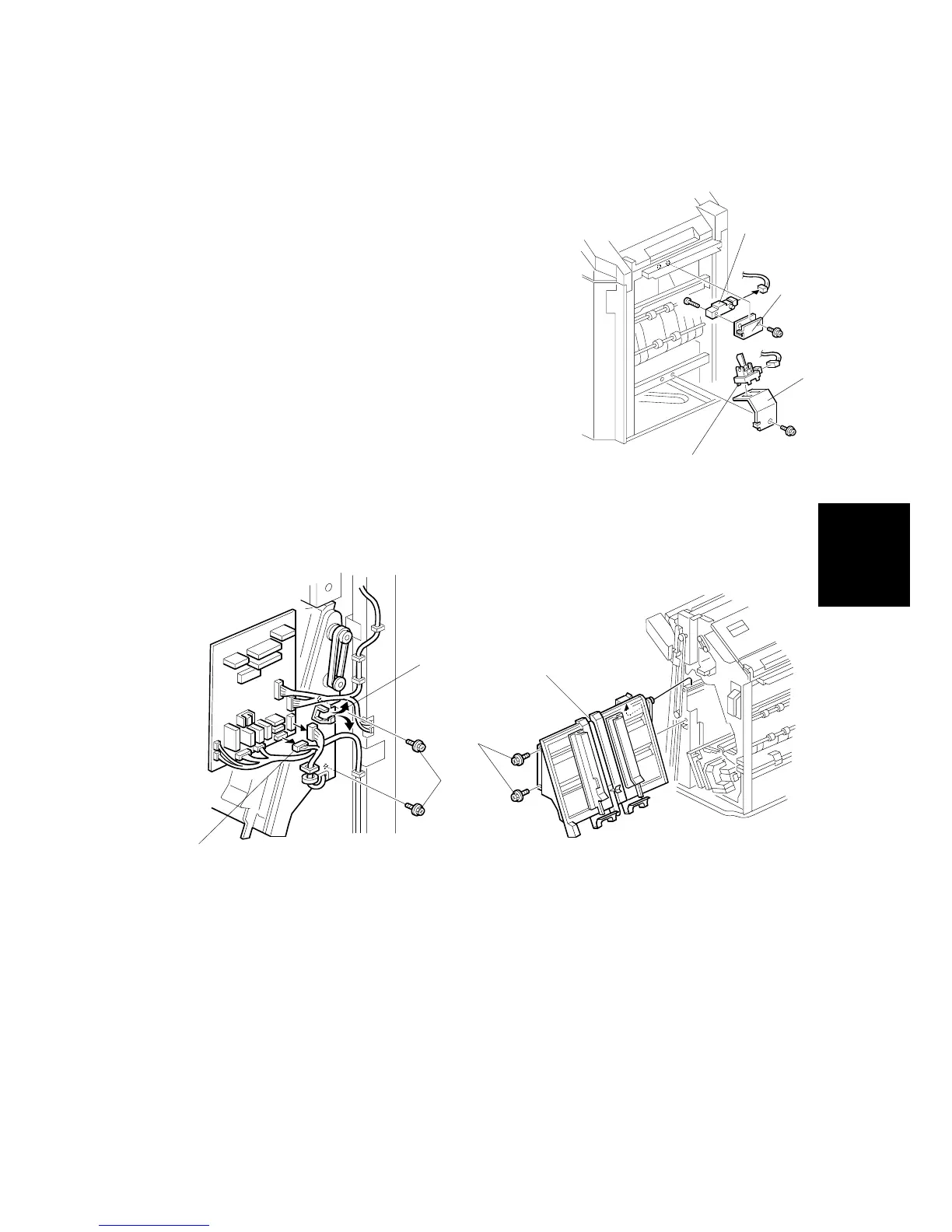

1. Entrance sensor bracket [A] ( x1,  x1)
2. Entrance sensor [B] ( x1)
3. Stapler tray entrance sensor bracket [C] ( x1,
 x1)
4. Stapler tray entrance sensor [D]
1.5 STAPLER TRAY
1. External covers, front door, inner cover (! 1.1.1, 1.1.2)
2. Two clamps [A]
3. Harnesses [B] ( x8)
4. Stapler tray [C] ( x2 [D],  x2 [E])
At the front of the finisher, pull the stapler tray toward you and lift it out.
