VIDEO DATA PATH
SM 125 B547
Fax Option
B547

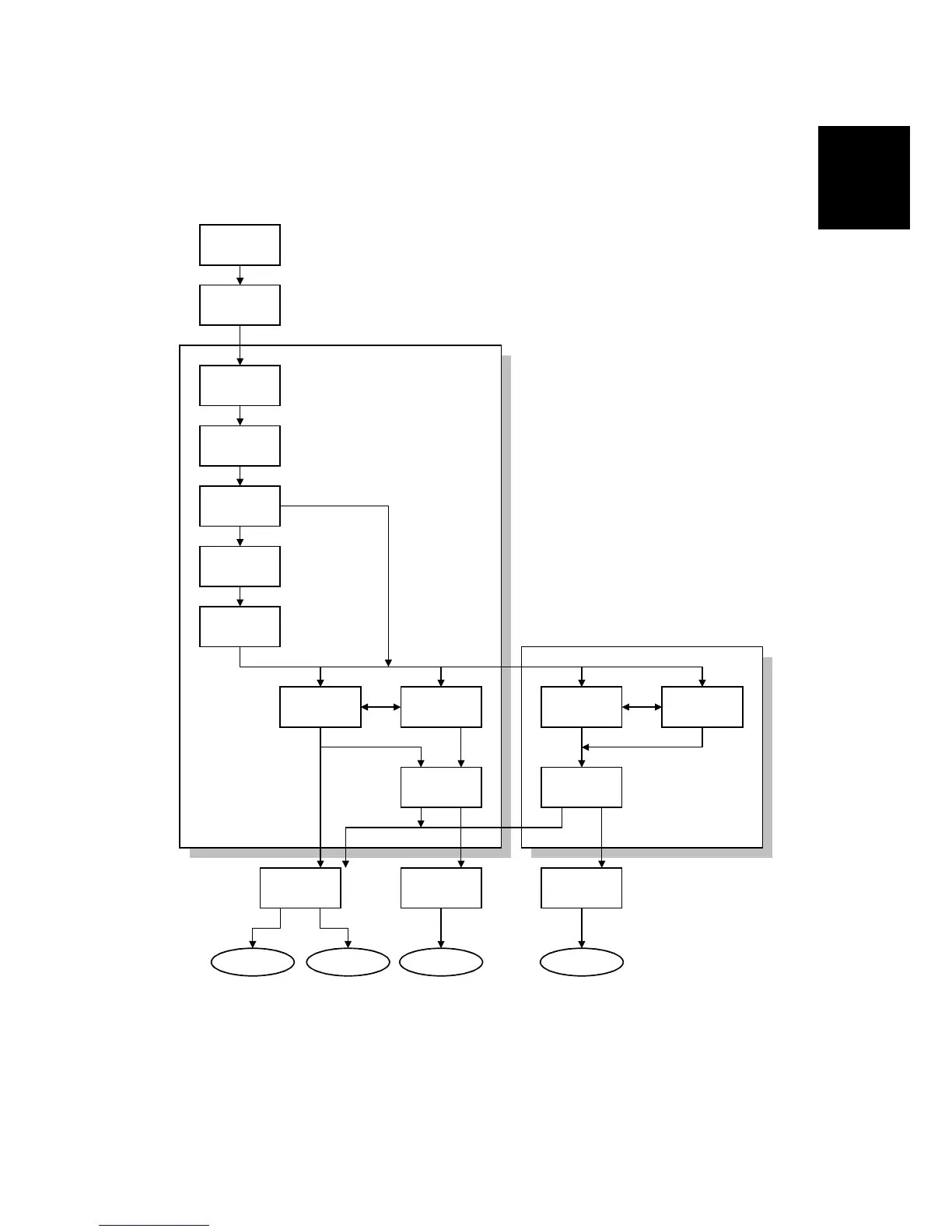

4.3 VIDEO DATA PATH
4.3.1 TRANSMISSION
SCANNER
BICU
FBI
FACE
Page
Memory
DCR
SAF
DCR
QM-
CODER
DCR
QM-
CODER
Modem
SiG4 NCU
Modem
NCU
ISDN G4 ISDN G3 Analog G3 Analog G3
FCU
SG3
(Option)
B360D511.WMF
