TRAY MOTOR REPLACEMENT
B542 14 SM
4.3 TRAY MOTOR REPLACEMENT
1. Remove the rear cover.

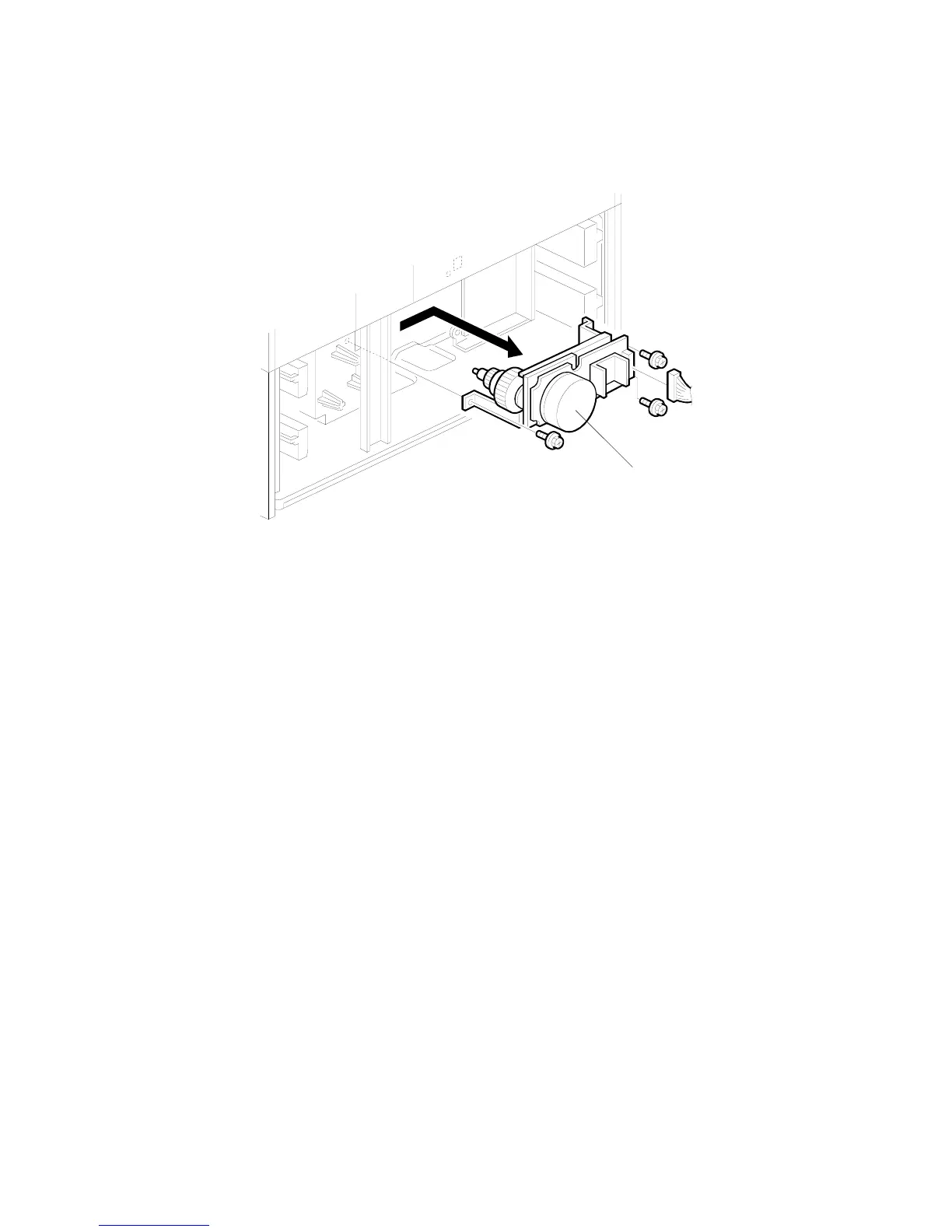

2. Remove the tray motor [A] (1 connector, 3 screws).
A682R502.WMF
[A]
