TWO-TRAY FINISHER INSTALLATION (B545)
SM 1-37 B079/B082
1.8.2 TWO-TRAY FINISHER INSTALLATION PROCEDURE
CAUTION
Unplug the main machine power cord before starting the following
procedure.
NOTE: The bridge unit (B538) and paper tray unit (B542) must be installed before
installing this finisher.

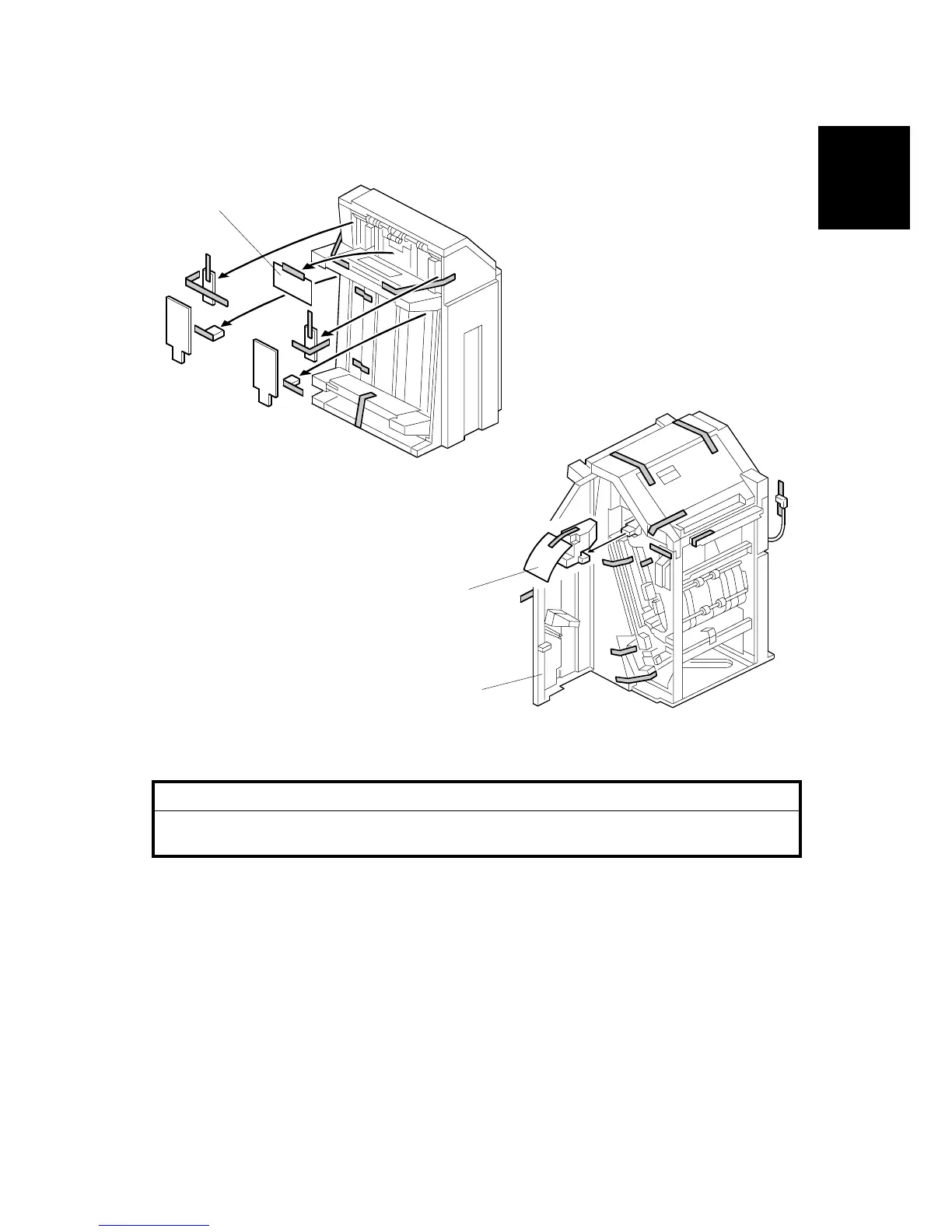

1. Unpack the finisher and remove all tapes and shipping retainers from outside
the unit [A].
2. Open the front door [B] and remove all tapes and shipping materials from inside
the finisher unit.
3. Save the retainer [C] and other shipping material.
NOTE: The retainer [C] must be re-installed in the finisher before moving or
shipping the finisher to another location.
B545I107.WMF
B545I101.WMF
[A]
[B]
[C]
