Ricoh B079 - Lower Right Cover

Replacement
Adjustment
PAPER FEED
SM 3-43 B079/B082
3.14.2 LOWER RIGHT COVER
1. Duplex unit (! 3.4)
2. By-pass tray (! 3.6)
3. LCT (if installed)

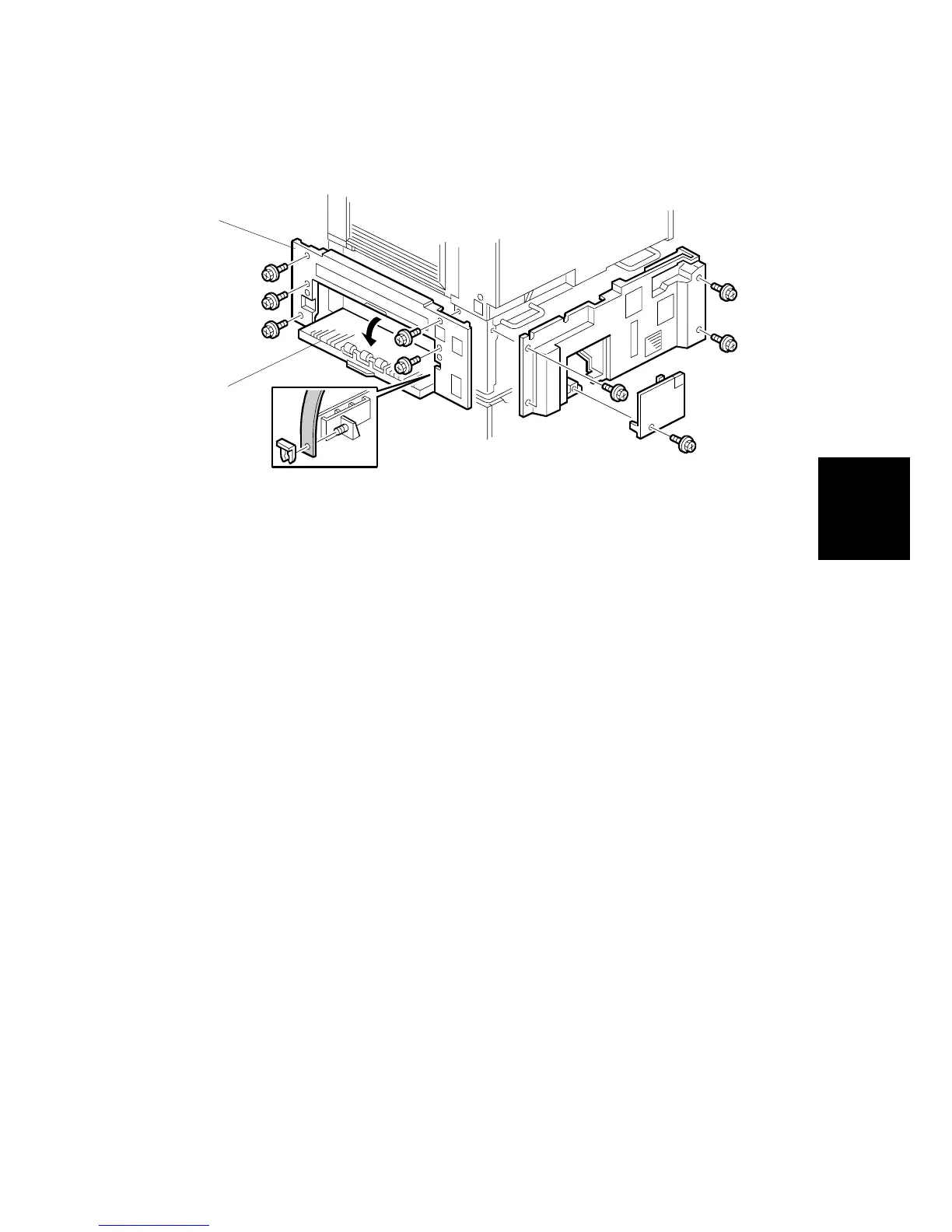

4. Lower right cover [A] ( x5)
5. Vertical transport cover [B]
NOTE: Push the cover completely to the left and then press in on the right tab
to release the peg from the hole.
B004R904.WMF
[A]
[B]
