Ricoh B079 - Drive Layout

OVERVIEW
B079/B082 6-4 SM

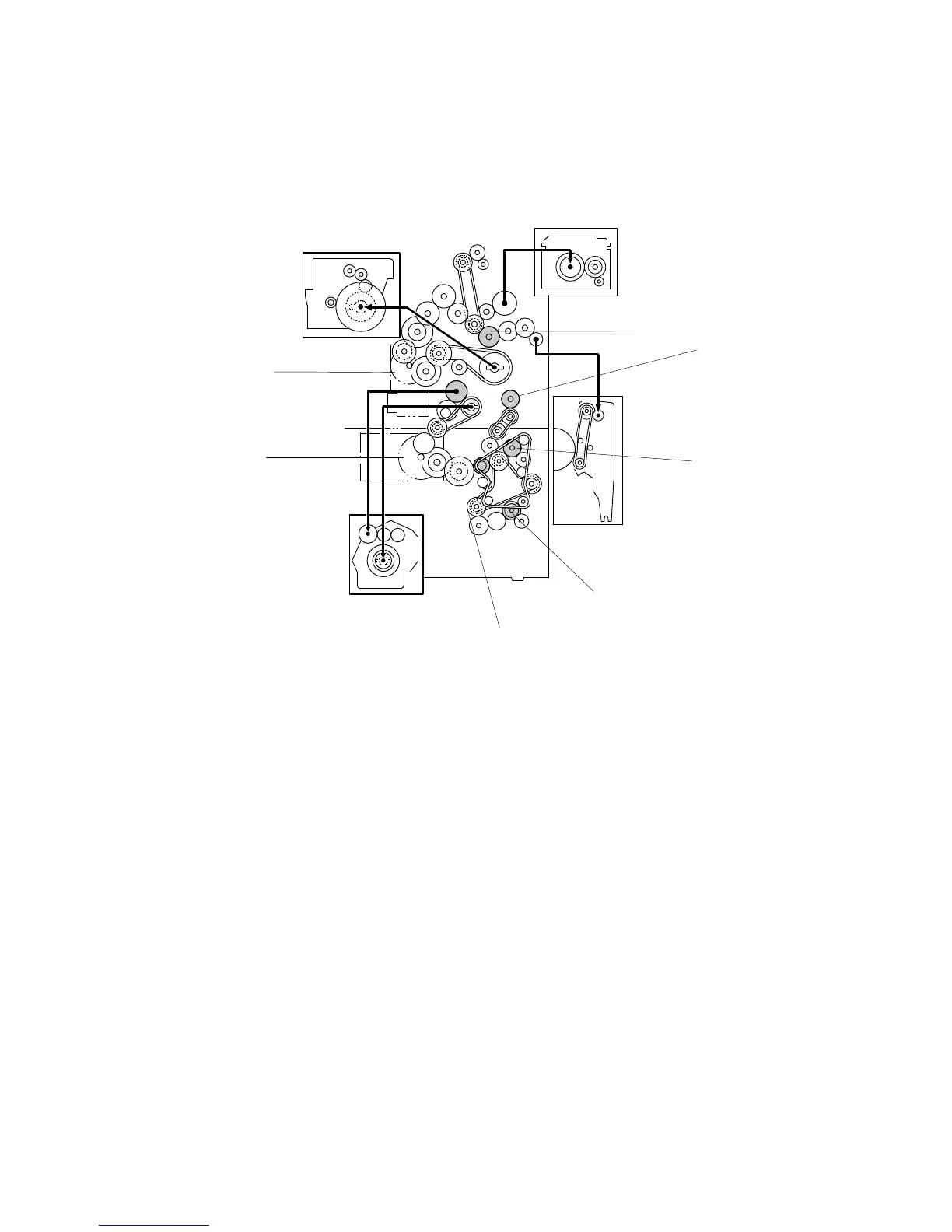

6.1.3 DRIVE LAYOUT
1 Transfer Belt Clutch 5 Relay Clutch
2 Registration Clutch 6 Main Motor
3 Upper Paper Feed Clutch 7 Paper Feed/Development Motor
4 Lower Paper Feed Clutch
In this machine, the development unit is provided with its own motor, separate from
the main motor.
B004V106.WMF
Fusing
Transfer
Development
PCU Drive
1
2
3
4
5
6
7
