1. REPLACEMENT AND ADJUSTMENT
1.1 COVERS
1.1.1 EXTERNAL COVERS

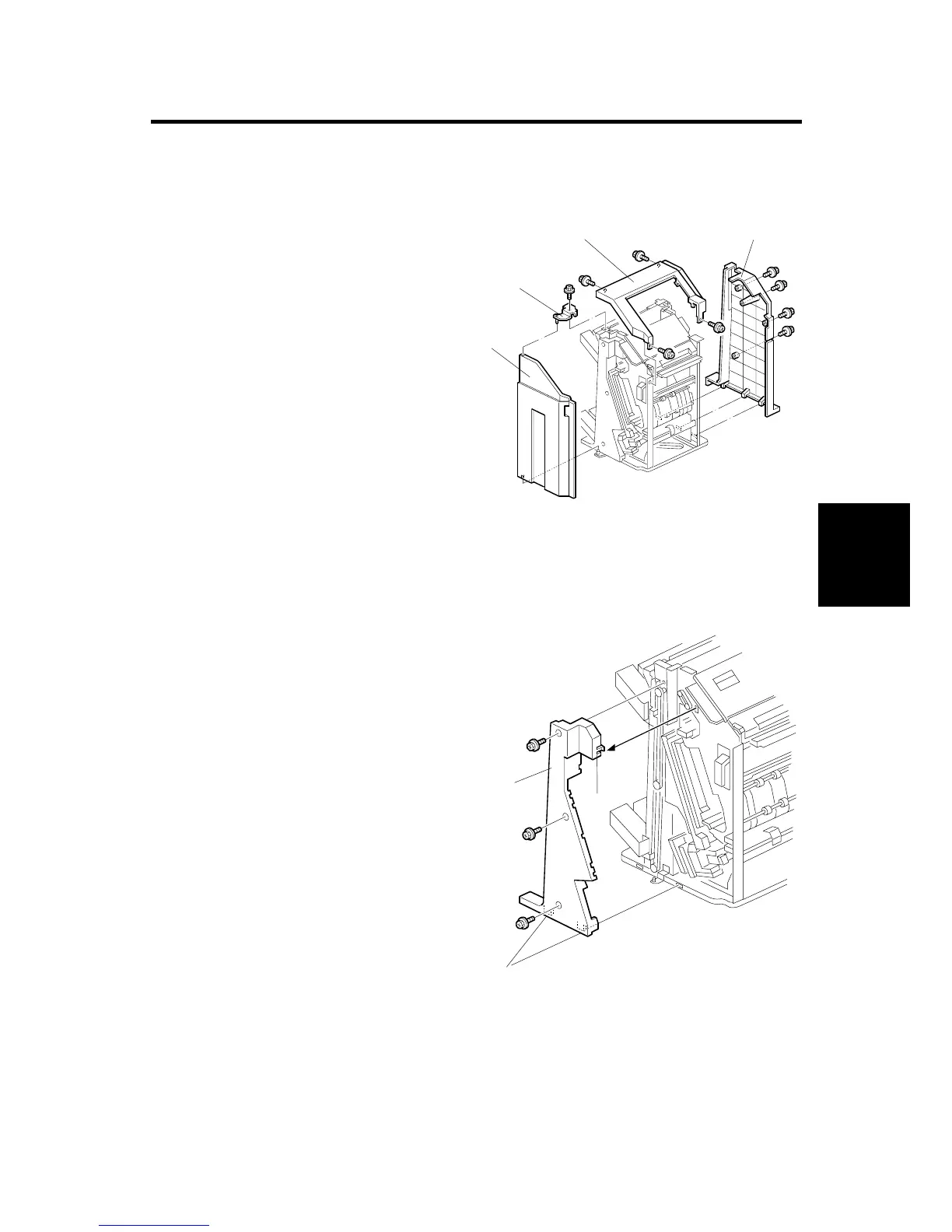

1. Top cover [A] ( x4)
If the shift tray below is blocking the
screw hole, remove the shift
tray.
2. Bracket [B] ( x1)
3. Front door [C]
4. Rear cover [D] ( x4)
1.1.2 INNER COVER
1. Front cover (! 1.1.1)
2. Inner cover [A] ( x3, tabs [B] x3)
B352R101.WMF
B352R102.WMF
[A]
[B]
[C]
[D]
[A]
[B]
[B]
