INVERTER /ORIGINAL SET SENSORS
B541 6 SM

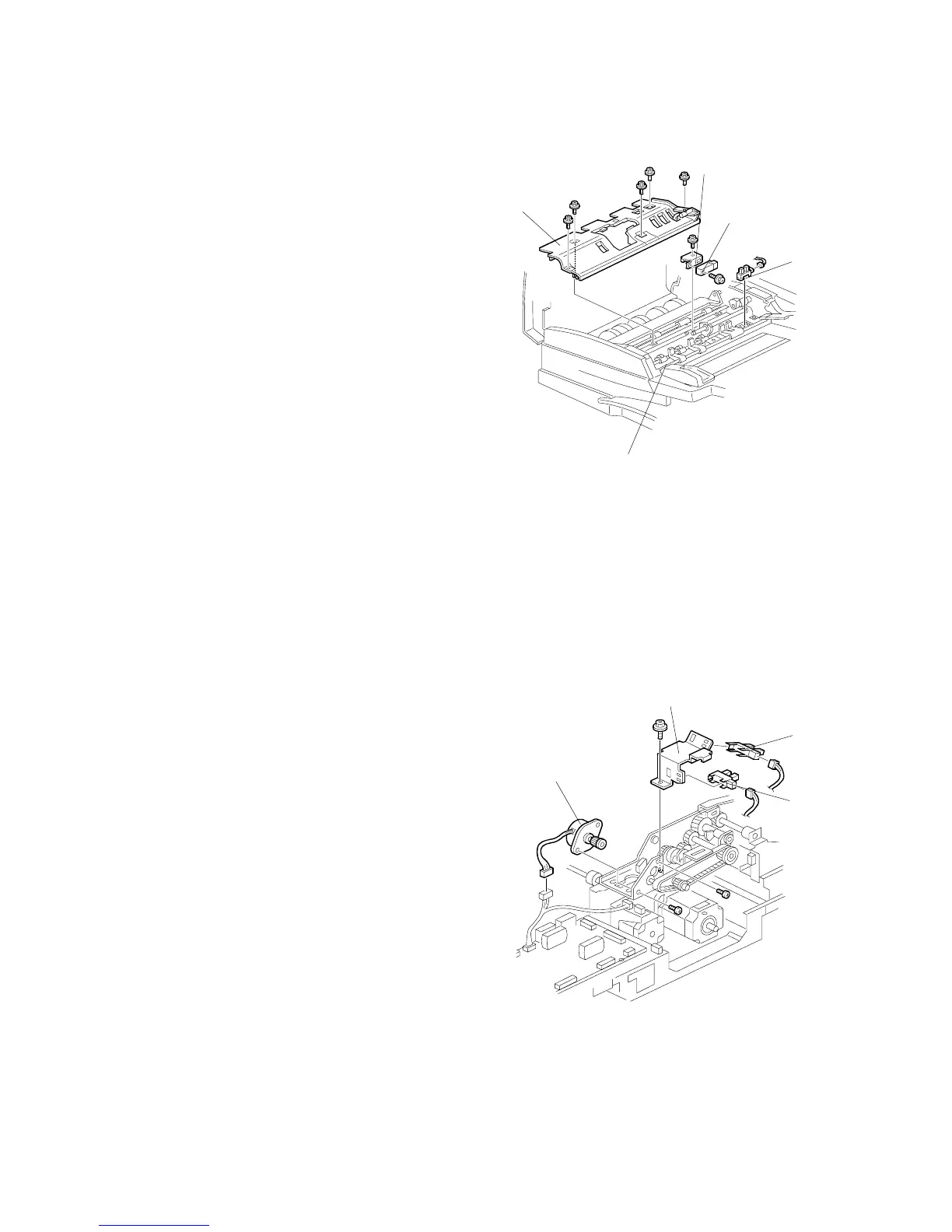

1.8 INVERTER /ORIGINAL SET SENSORS
1. Rear cover. (! 1.1)
2. Lower the original stopper [A] by
rotating the pick-up motor.
3. Original feed unit.(! 1.2)
4. Feed guide plate [B] ( x5)
NOTE: Raise the original tray before
you re-install the paper feed guide.
5. Separation roller, torque limiter ( x1)
(! 1.7)
6. Bracket [C] ( x1,  x1)
7. Inverter sensor [D] ( x1)
8. Original set sensor [E] ( x1)
1.9 PICK-UP MOTOR/ORIGINAL STOPPER HP
SENSOR/PICK-UP HP SENSOR
1. Rear cover (! 1.1)
2. Pick-up motor [A] ( x1,  x2, Timing
belt)
3. Sensor bracket [B] ( x2,  x1)
4. Pick-up HP sensor [C]
5. Original stopper HP sensor [D]
B351R109.WMF
B351R114.WMF
[A]
[B]
[C]
[D]
[E]
[A]
[B]
[C]
[D]
