Ricoh B079 - Exit Guide Plate Motor; Lift Motors

EXIT GUIDE PLATE MOTOR
SM 5 B545
Two-Tray
Finisher
B545

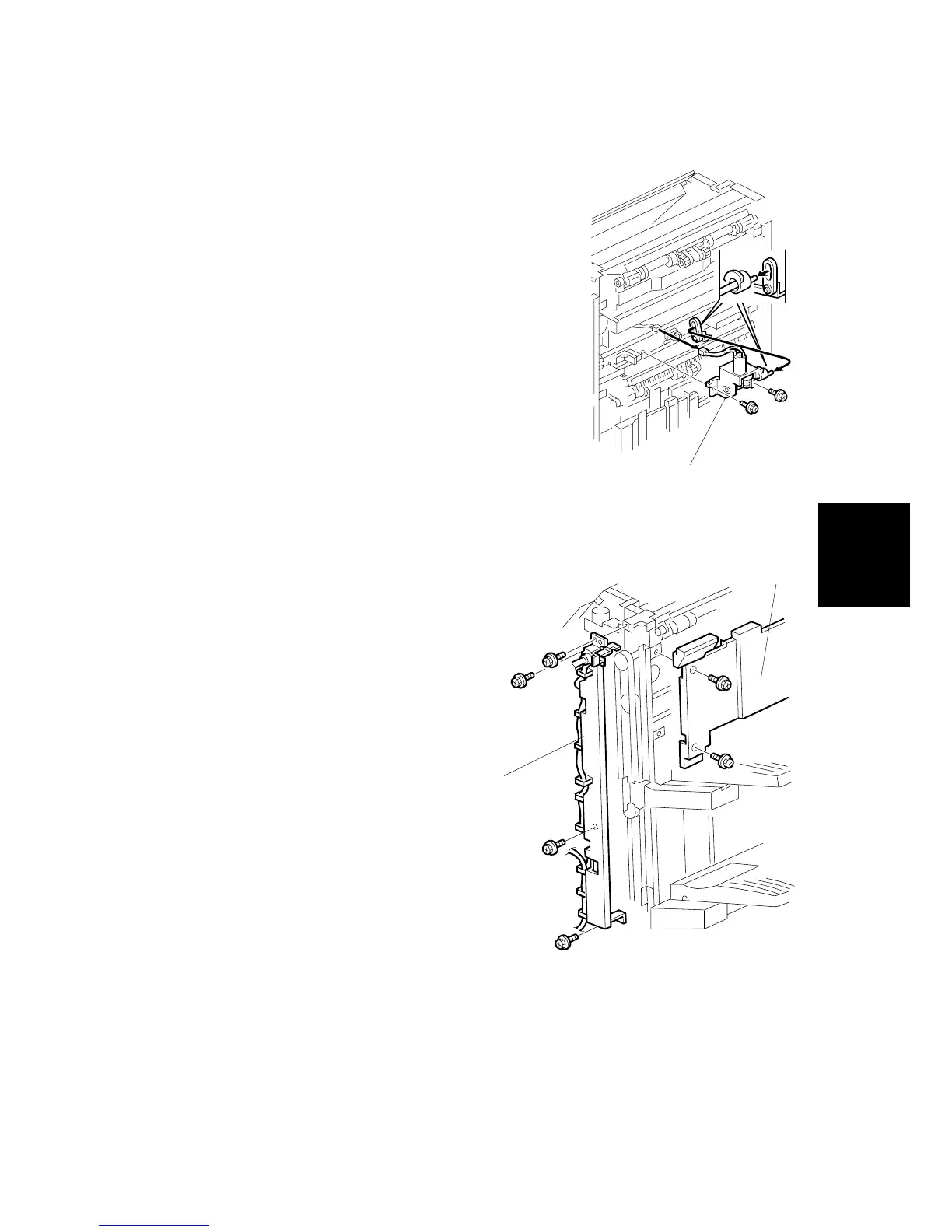

1.7 EXIT GUIDE PLATE MOTOR
1. Tray 1 back fence (! 1.6)
2. Exit guide plate motor [A] ( x2,  x1)
Disengage the shaft of the exit guide plate motor
from the ring.
1.8 LIFT MOTORS
1. Top cover and rear cover (! 1.1.1)
2. Tray 1 back fence [A] (! 1.6)
3. Sensor stay [B] ( x4)
B352R111.WMF
B352R203.WMF
[A]
[A]
[B]
