Ricoh B079 - Drive Area

DRIVE AREA
B079/B082 3-74 SM

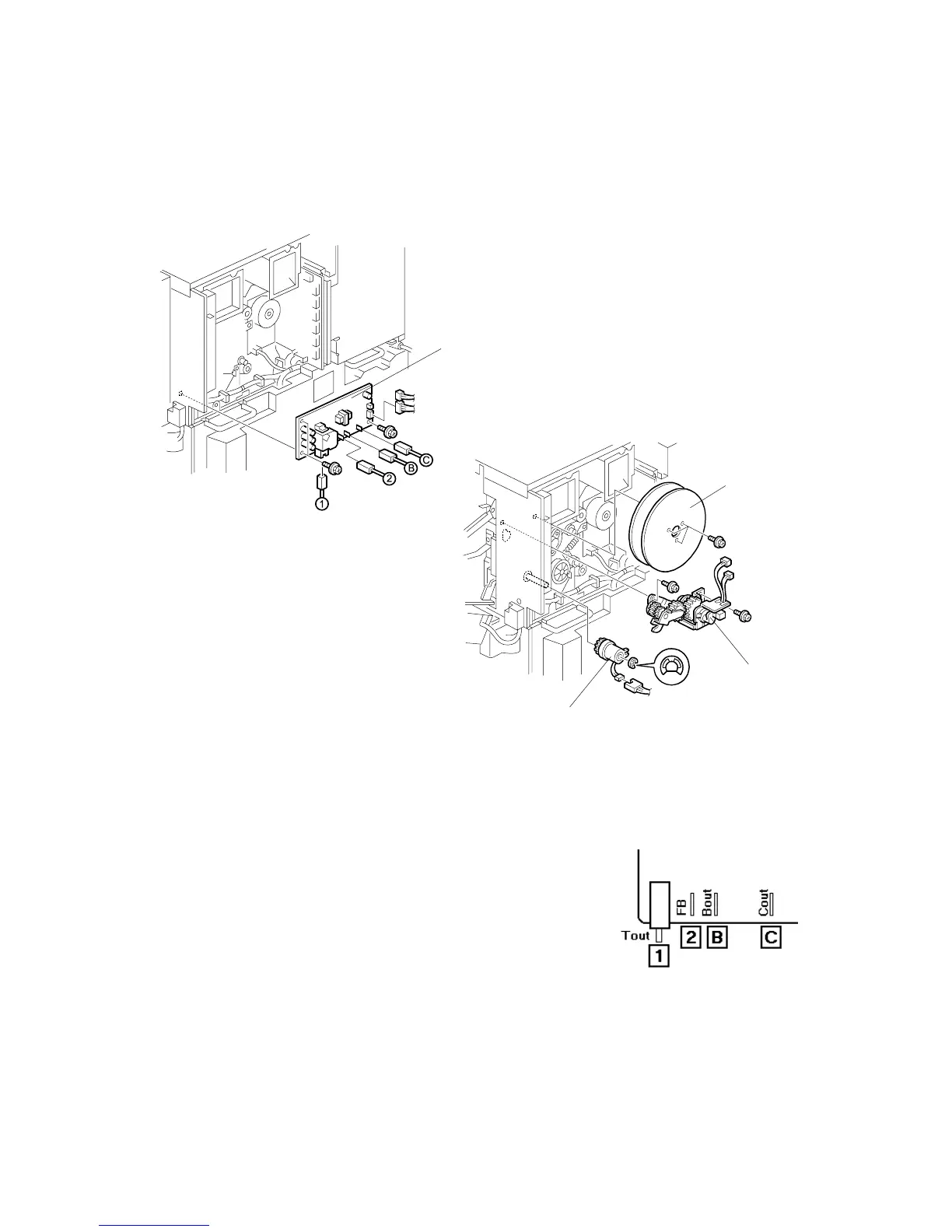

3.18 DRIVE AREA
3.18.1 REGISTRATION CLUTCH AND TRANSFER BELT
CONTACT CLUTCH
1. Rear upper cover (not shown) ( x2)
2. High voltage supply board [A] ( x6,  x3)
NOTE: Make sure that you re-connect the wires in
the correct order. They are labeled 1 # 2
# B # C
3. Flywheel [B] ( x3)
4. Registration clutch [C] ( x1,  x1)
5. Transfer belt contact clutch [D] ( x2,  x2)
B004R965.WMF
B004R966.WMF
B004R502.WMF
[A]
[C]
[D]
[B]
