DEVELOPMENT
B079/B082 3-34 SM
3.12 DEVELOPMENT
3.12.1 DEVELOPMENT UNIT

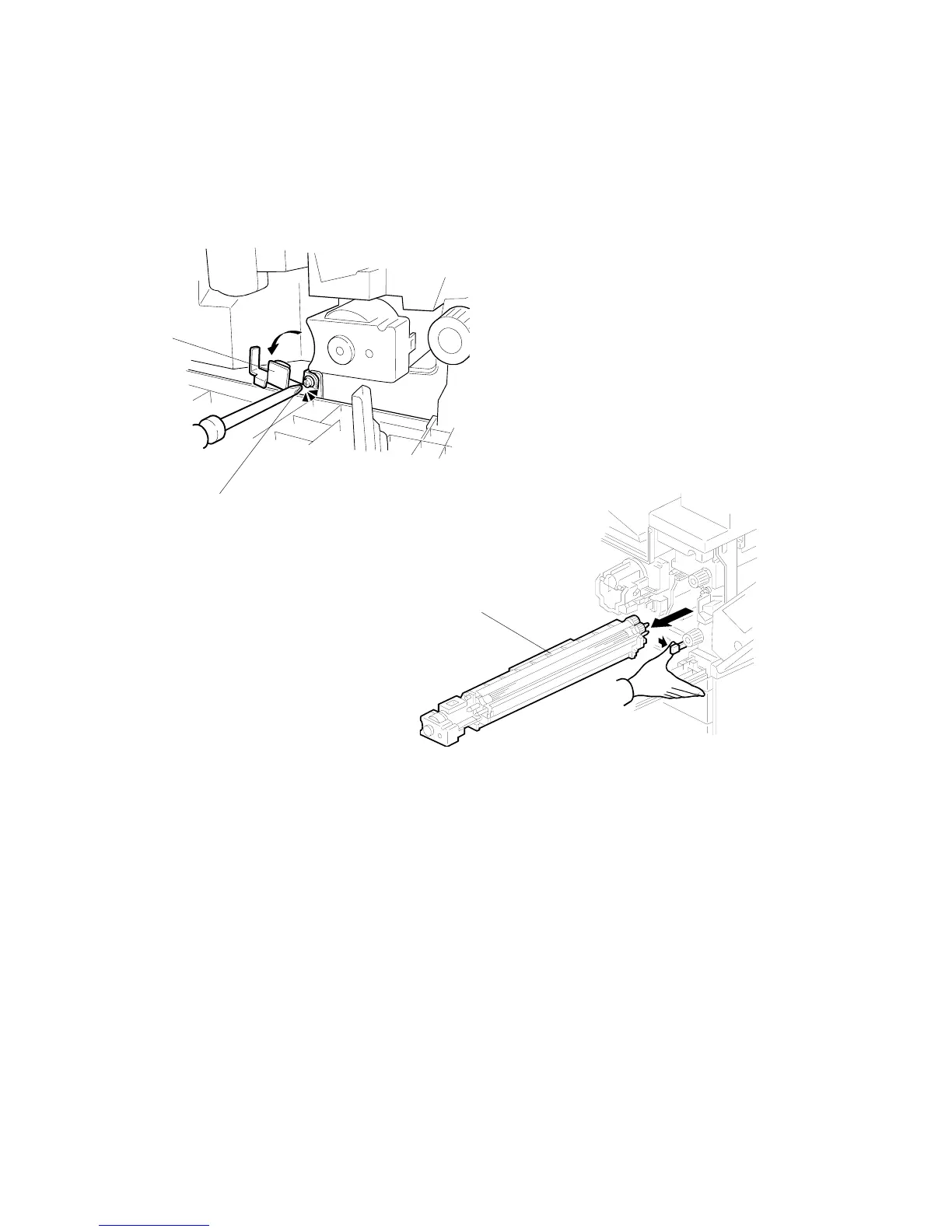

1. Open the right upper cover and front cover.
2. PCU. (! 3.11.1)
NOTE: Spread paper on a clean flat surface that is free of pins, paper clips,
staples, screws or any other metal objects.
3. Loosen [A] ( x1)
4. Rotate bracket [B] left.
5. Development unit [C]
NOTE: Pull slowly to avoid scratching or nicking the development roller.
6. Set the development unit on the spread paper.
7. If you are temporarily installing a used development unit for test purposes,
perform SP2-220 and 2-802-1 after installation (! Chapter 5, “Service Tables)
