PAPER FEED MECHANISM
B543 6 SM
2. DETAILED DESCRIPTIONS
2.1 PAPER FEED MECHANISM

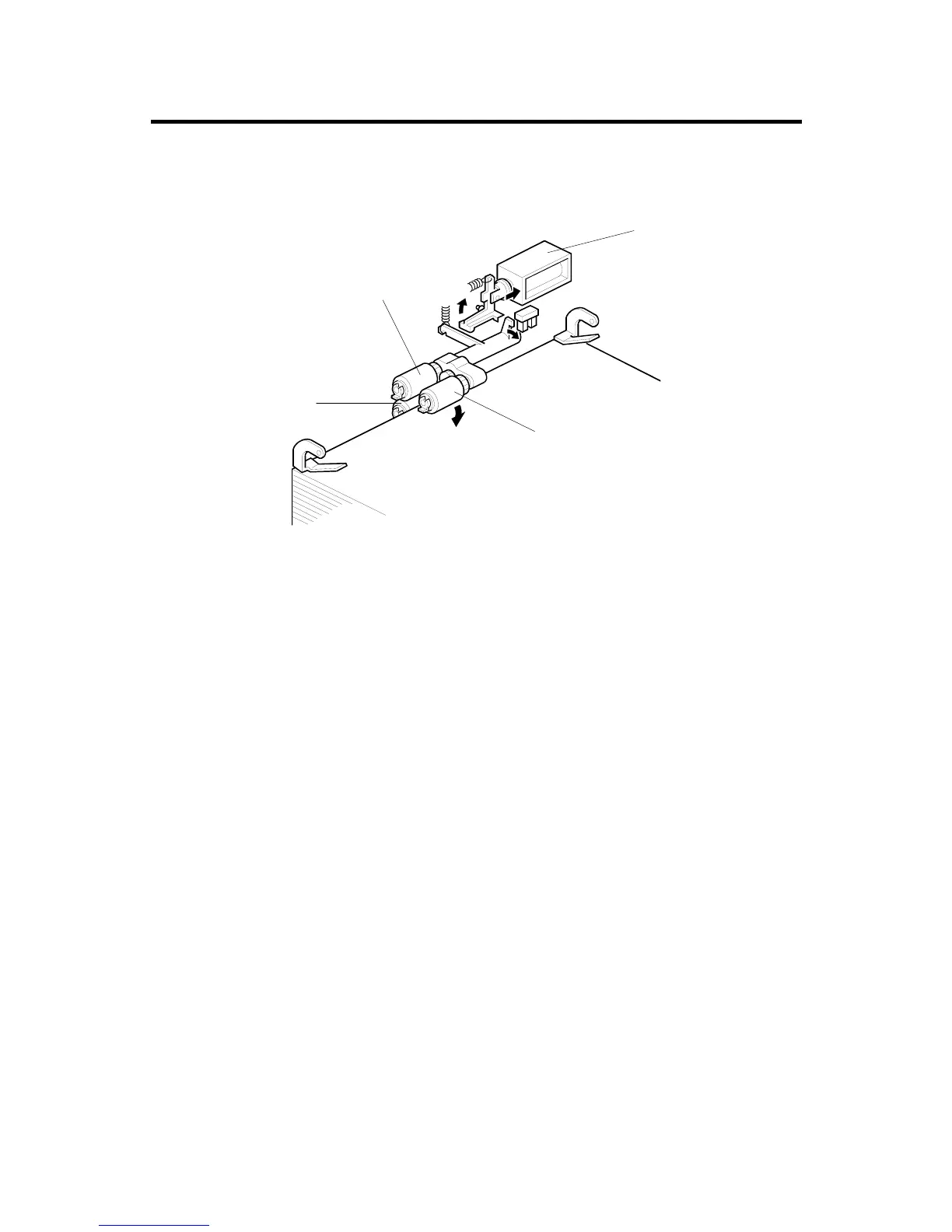

This machine uses the FRR (Feed and Reverse Roller) paper feed system (paper
feed roller [A], separation roller [B], pick-up roller [C]).
When the start key is pressed, the pick-up solenoid [D] energizes and the pick-up
roller touches the paper.
A683D500.WMF
[A]
[D]
[C]
[B]
