Ricoh B079 - Exit Sensor; Stamp Solenoid; Controller Board

EXIT SENSOR
SM 9 B541
Auto Reverse
Document
Feeder
B541

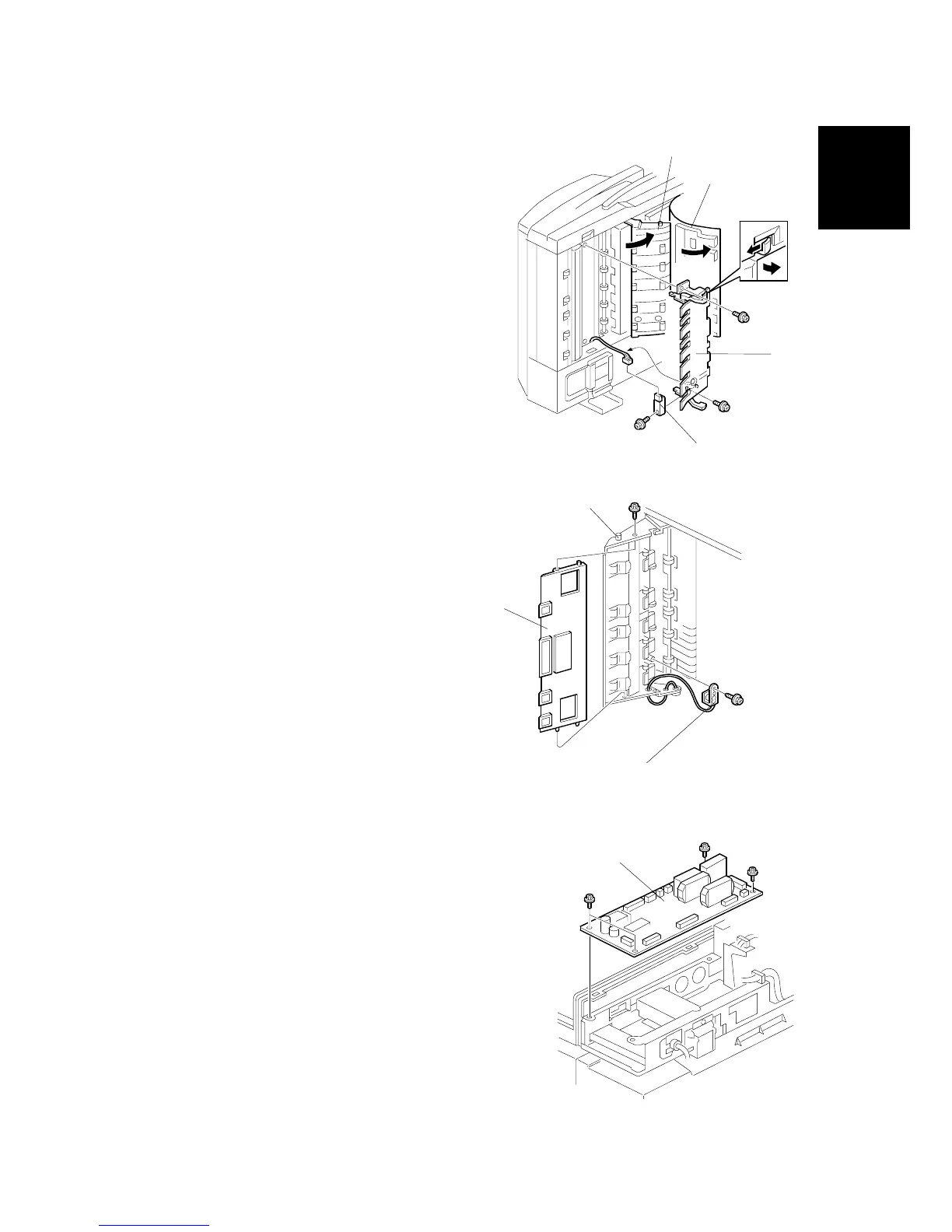

1.12 EXIT SENSOR
1. Open the ARDF.
2. Pull platen cover [A] off halfway.
3. Open exit guide plate [B].
4. Exit guide plate cover [C] ( x2)
5. Exit sensor [D] ( x1,  x1)
1.13 STAMP SOLENOID
1. Rear cover, front cover, platen sheet, exit
tray (! 1.1)
2. Open the original guide [A].
3. Plate [B] ( x1)
4. Stamp solenoid [C] ( x1,  x1)
1.14 CONTROLLER BOARD
1. Rear cover (! 1.1)
2. Controller board [A] ( x4, all )
B351R116.WMF
B351R201.WMF
B351R202.WMF
[A]
[B]
[C]
[D]
[A]
[A]
[B]
[C]
