POSITIONING ROLLER
B545 2 SM
1.2 POSITIONING ROLLER

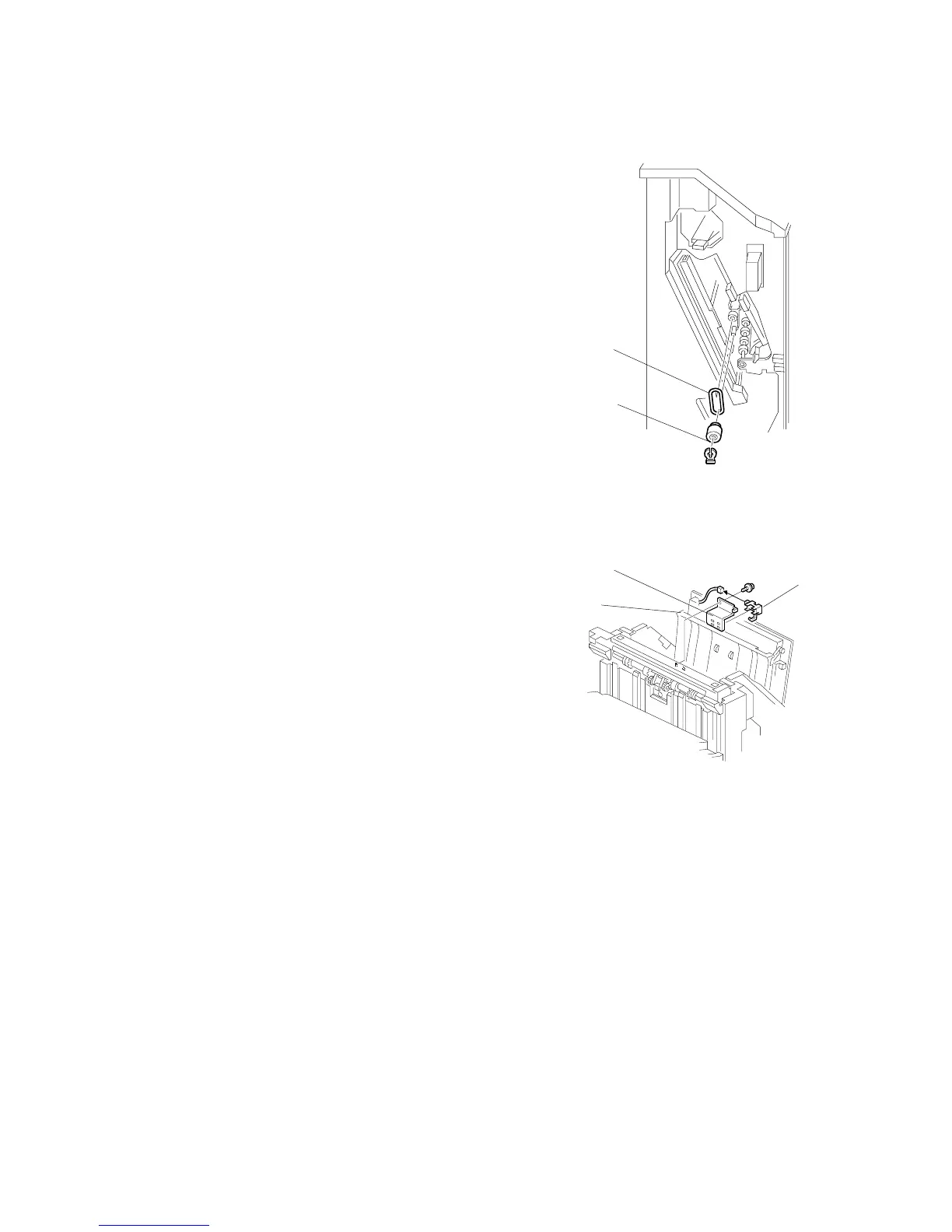

1. Open the front door.
2. Positioning roller [A] ( x1)
3. Belt [B]
1.3 TRAY 1 EXIT SENSOR
1. Top cover (! 1.1.1)
2. Open transport door [A]
3. Bracket [B] ( x1, ( x1)
4. Tray 1 exit sensor [C]
B352R103.WMF
B352R104.WMF
[A]
[B]
[A]
[B]
[C]
