Ricoh B079 - Exposure Glass

Replacement
Adjustment
SCANNER UNIT
SM 3-9 B079/B082

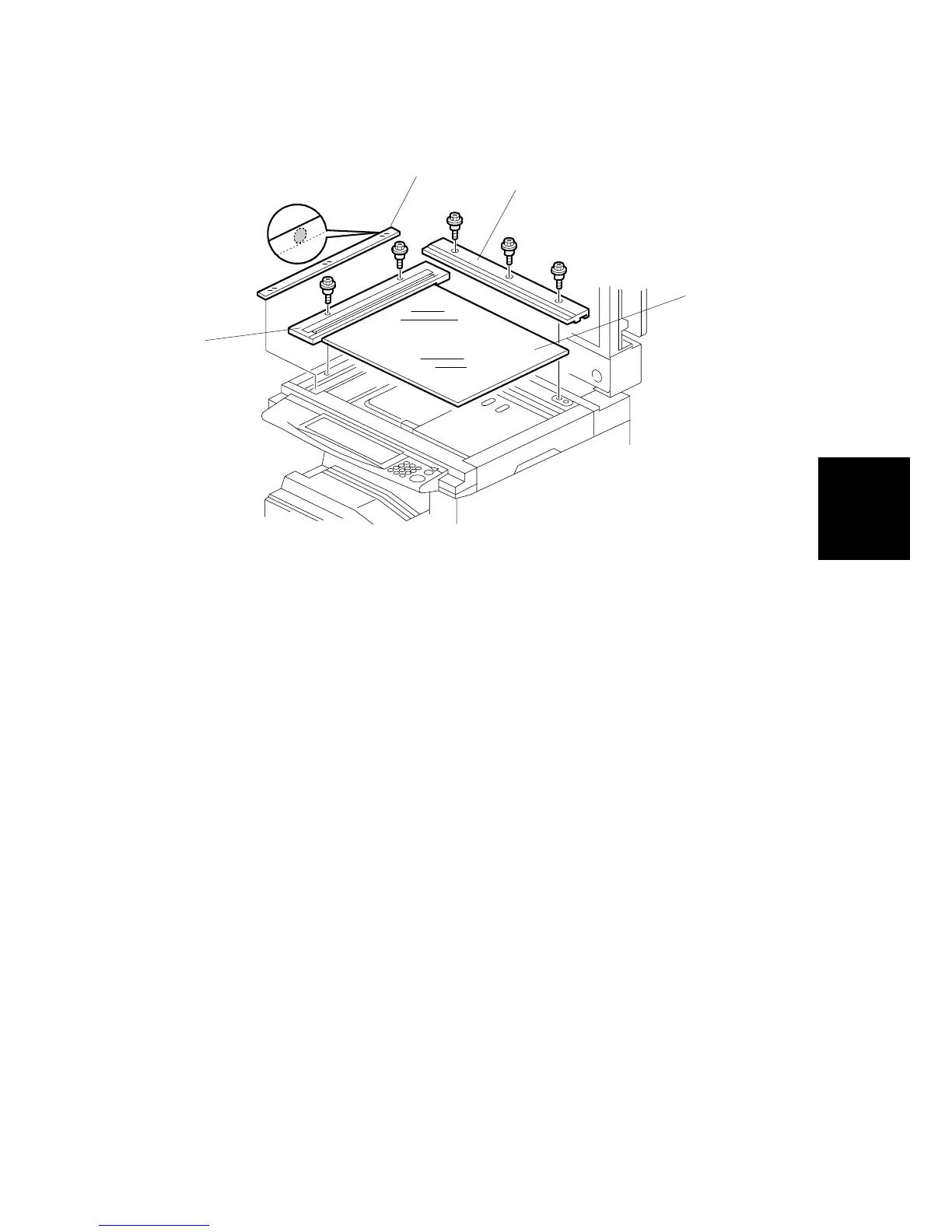

3.9.2 EXPOSURE GLASS
1. Open the ARDF or platen cover.
2. Rear scale [A] ( x3)
3. Left scale [B] ( x2)
4. Exposure glass [C]
5. DF exposure glass [D]
NOTE: When reinstalling the DF exposure glass, make sure that the white dot is
positioned, dot down, at the rear left corner.
B004R959.WMF
[A]
[B]
[D]
[C]
