PAPER HEIGHT DETECTION
B542 10 SM
2.4 PAPER HEIGHT DETECTION
3511333435
3511333435
3511333435
3511333436
A682D505.WMF

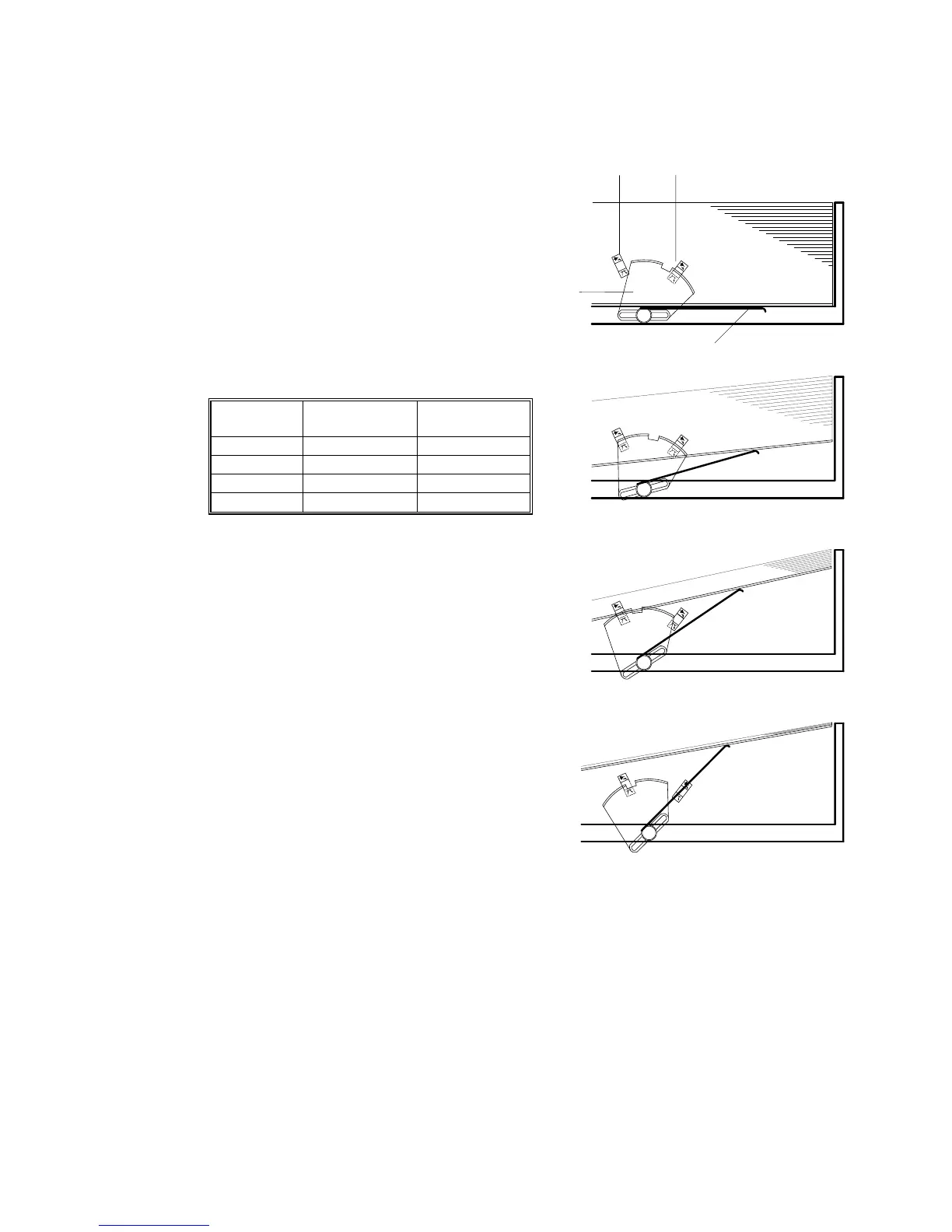

The amount of paper in the tray is
detected by the combination of two paper
height sensors, [A] and [B].
When the amount of 2 paper decreases,
the bottom plate pressure lever [C] moves
up and the actuator [D] which is mounted
on the same drive shaft as the pressure
lever rotates.
The following combination of sensor
signals is sent to the copier.
Amount of
Paper
Paper Height
Sensor 1
Paper Height
Sensor 2
Full OFF ON
Near Full ON ON
Near End 1 ON OFF
Near End 2 OFF OFF
[A]
[C]
[B]
[D]
Full
Near Full
Near End 1
Near End 2
