BOOKLET UNIT JOGGER MOVEMENT MECHANISM
B546 14 SM
2.11 BOOKLET UNIT JOGGER MOVEMENT MECHANISM

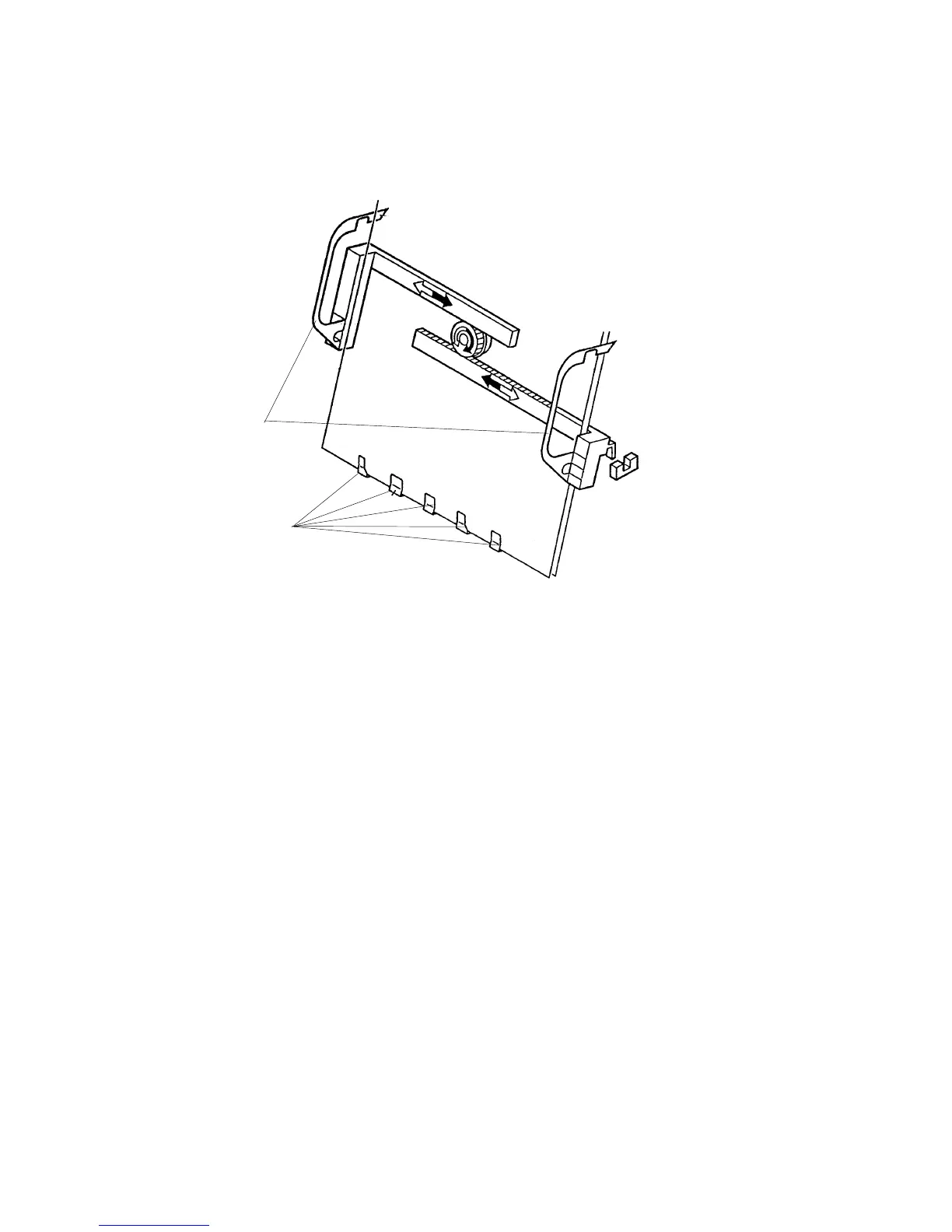

When the start key is pressed, the booklet jogger motor turns on to move the
jogger fences [A] to the waiting positions that are 10 mm from each of the paper
side edges.
Each time a sheet of paper reaches the positioning plate [B], the jogger fences
move toward the paper to align the paper once. The fences move back a short
distance and move forward again the paper to align for the second time. Then, the
fences go back to the waiting position.
When the last sheet is aligned, the fences stay at the aligning positions during
stapling.
B546D557.PCX
[A]
[B]
